Stena
Multi-Layer Flow Modulator

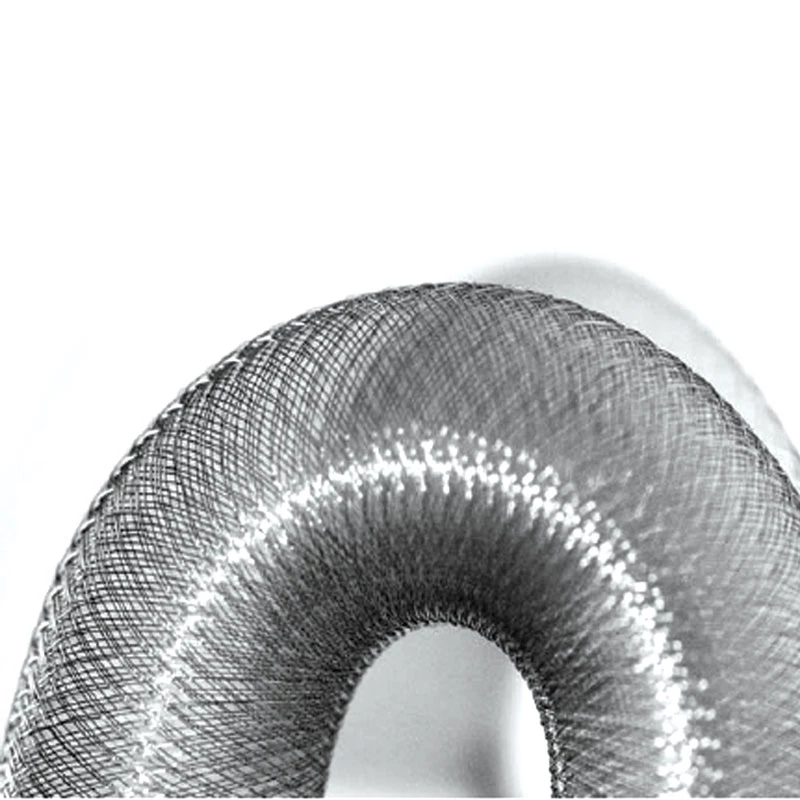

The stent is made of super alloy biomedical wire with a self-expandable system, knitted in a multi-layer tubular mesh structure. This design structure allows the stent to be flexible, conformable, and self-expanding.
| Stent Diameter | 25 mm- 45mm | |
| Stent Lenght | 80 mm - 200 mm | |
| Catheter Diameter | 18F - 20F | |
| Catheter Lenght | 100cm | |
| Applicable Guideware | 0.035" | |
| Stent Design | 5-layer Mesh Design |
The stent is made of superalloy biomedical wire with a self-expandable system, knitted in a multi-layer tubular mesh structure. This design structure allows the stent to be flexible, conformable, and self-expanding. The stent has radiopaque markers made of tantalum at both ends. The transmission system is compatible with a 0.035” guide wire. The delivery system is compatible with 18F and 20F size- 0.035" guidewire. Sheath Y is connected to the pusher through the hemostasis valve. When tightened, the sheath locks into the holder. This lock is required to prevent premature deployment of the multilayer current routing system
Detailed specifications
- Provides restoration of healthy laminar blood flow
- Protects branch artery patency
- Organized stable thrombus formation
- Rapid endothelialization along the vessel wall
- The effective minimally invasive implantation procedure
- Radiopaque markers are made of tantalum at both ends.
- Compatible with 0.035” guide wire.
BRANCH VESSEL PATENCY AND IMPROVING PERFUSION
- With its tight-knit structure, it allows development of a better endothelialization
- Its enlarged ends promote compliance with the aortic wall and provide optimum sealing at both proximal and distal landing sites to prevent the risk of type I and III leaks.
- Conforms to complex aortic anatomy in challenging thoracoabdominal areas
- Multi-layer braided design of nitinol alloy wires provides extra durability
It has a low profile, push-pull and twist-resistant reinforced distribution system.
| Stent Diameter | 25 mm- 45mm | |
| Stent Lenght | 80 mm - 200 mm | |
| Catheter Diameter | 18F - 20F | |
| Catheter Lenght | 100cm | |
| Applicable Guideware | 0.035" | |
| Stent Design | 5-layer Mesh Design |
