Invaducer
Introducer Sheath Set
INVAMED angiography accessories consist of products that will meet all the needs for opaque and fluid delivery in angiography procedures. The products have high quality standards, provide safe and easy use.

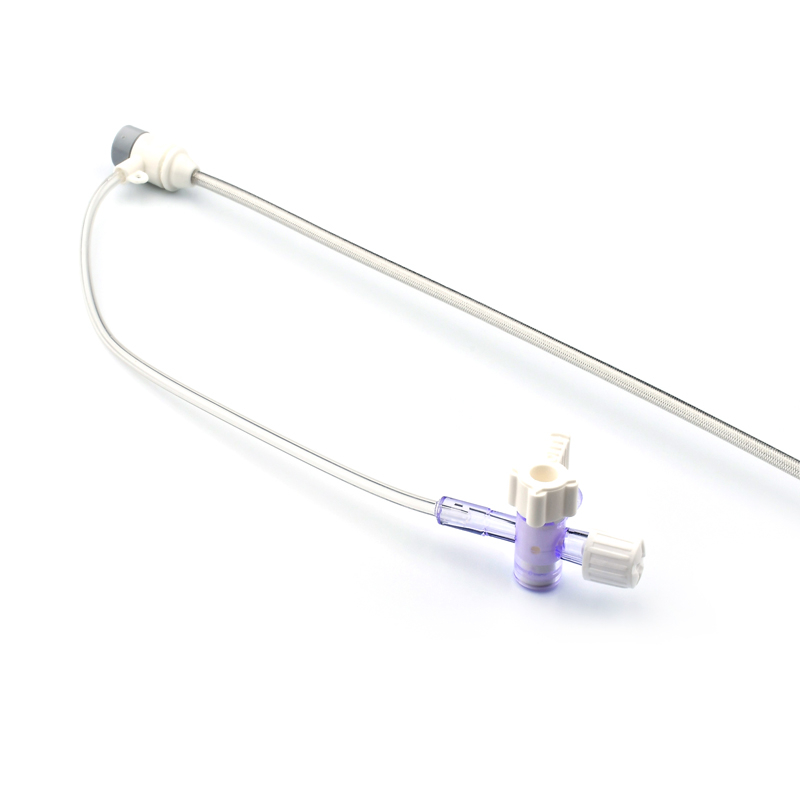

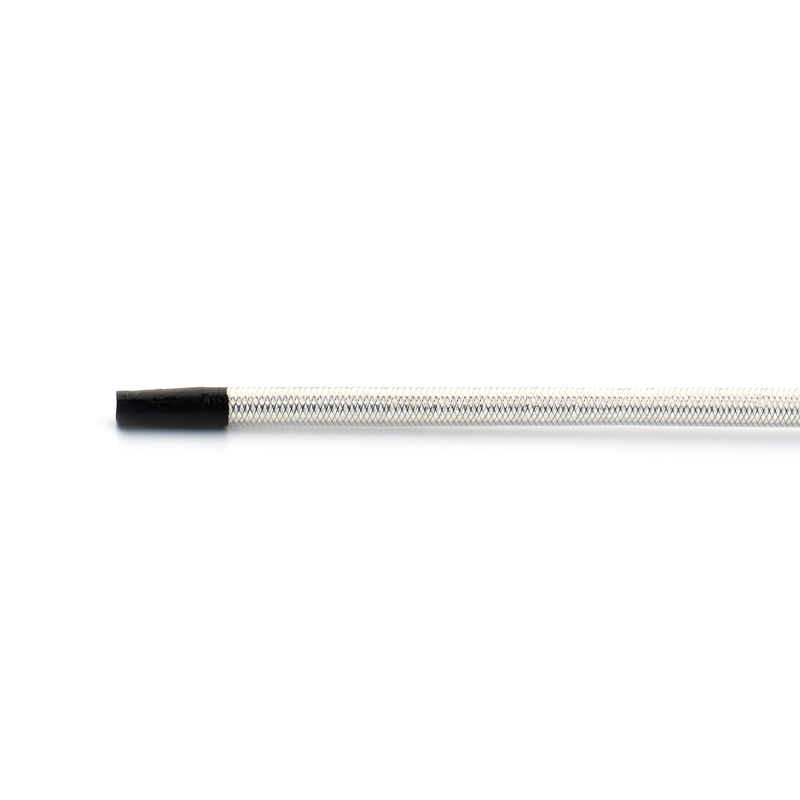

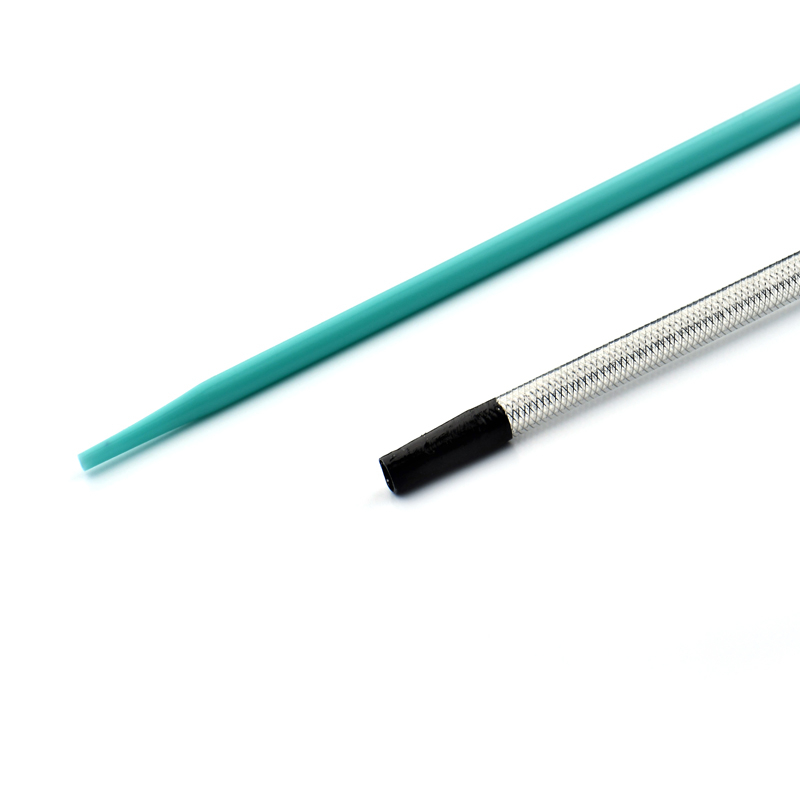

The INVADUCER is designed to perform as an introducer sheath. The Introducer Sheath Set is a hemostasis valve introducer system that consists of a dilator, guidewire, syringe, and sheath with a hemostasis valve and a side port on the most proximal end of the sheath assembly. The Introducer Sheath Set is designed to facilitate the percutaneous introduction of catheters into the vascular system while minimizing blood loss.
Detailed specifications
The InvaducerⓇ is intended to be inserted percutaneously into a vessel to facilitate the insertion of angiographic, electrode, balloon, or similar catheters. Designed for Easy Insertion and for Patient Comfort A percutaneous introducer is used to facilitate placing a catheter through the skin into a vein or artery. Percutaneous introducers are recommended for initial percutaneous introduction or the exchange of intravascular devices.
INVAMED angiography accessories consist of products that will meet all the needs for opaque and fluid delivery in angiography procedures. The products have high-quality standards and provide safe and easy use.
INVAMED angiography accessories consist of products that will meet all the needs for opaque and fluid delivery in angiography procedures. The products have high-quality standards and provide safe and easy use.
| Order Number | Diameter | Excluded Lengths (cm) | Design |
| VS1242 | 4 | 11 | Hydrophilic |
| VS1243 | 4 | 16 | Hydrophilic |
| VS1244 | 5 | 11 | Hydrophilic |
| VS1245 | 5 | 16 | Hydrophilic |
| VS1246 | 6 | 11 | Braided Hydrophilic |
| VS1247 | 6 | 24 | Braided Hydrophilic |
| VS1248 | 6 | 35 | Braided Hydrophilic |
| VS1249 | 6 | 45 | Braided Hydrophilic |
| VS1250 | 6 | 65 | Braided Hydrophilic |
| VS1251 | 6 | 90 | Braided Hydrophilic |
| VS1252 | 6 | 13 | Hydrophilic |
| VS1253 | 6 | 30 | Hydrophilic |
| VS1254 | 6 | 45 | Hydrophilic |
| VS1255 | 7 | 16 | Braided Hydrophilic |
| VS1256 | 7 | 44 | Braided Hydrophilic |
| VS1257 | 7 | 16 | Hydrophilic |
| VS1258 | 7 | 44 | Hydrophilic |
| VS1259 | 8 | 16 | Hydrophilic |
| VS1260 | 8 | 64 | Hydrophilic |
| VS1261 | 8 | 45 | Braided Hydrophilic |
| VS1262 | 8 | 64 | Braided Hydrophilic |
| VS1263 | 9 | 11 | Hydrophilic |
| VS1264 | 9 | 16 | Hydrophilic |
| VS1265 | 9 | 45 | Hydrophilic |
| VS1266 | 10 | 11 | Hydrophilic |
| VS1267 | 10 | 16 | Hydrophilic |
| VS1268 | 10 | 45 | Hydrophilic |
| VS1269 | 11 | 11 | Hydrophilic |
| VS1270 | 11 | 16 | Hydrophilic |
| VS1271 | 11 | 45 | Hydrophilic |
