Atlas
Drug Eluting Coronary Stent System SS
ADVANCES ACUTE PERFORMANCE

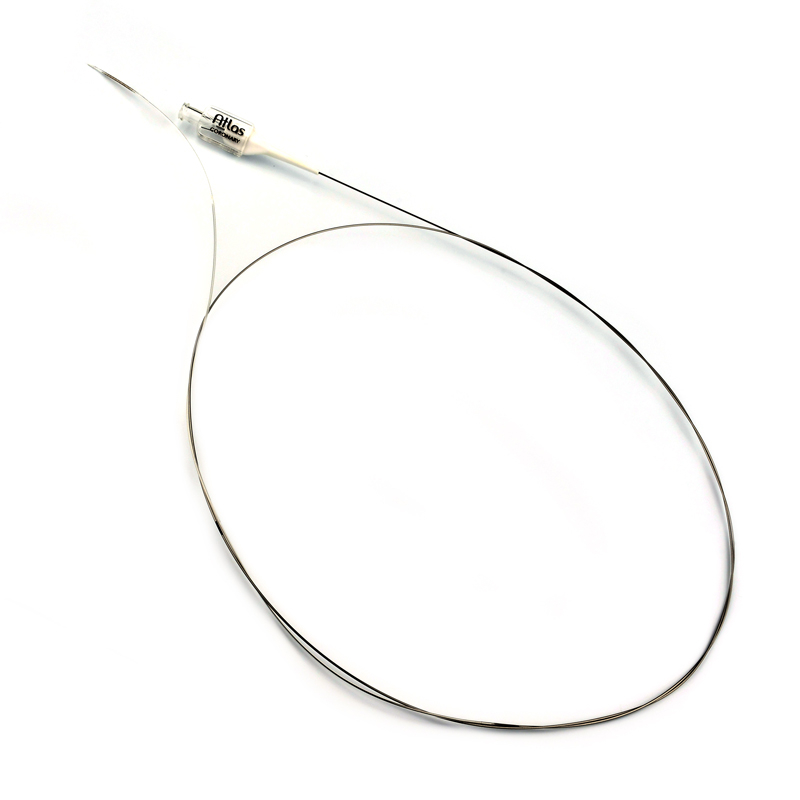

AtlasⓇ is a coronary balloon-expandable Stainless Steel stent system consisting of sirolimus particles. It is indicated for de novo and in-stent restenotic lesions in patients with coronary artery disease – including acute coronary syndrome acute myocardial infarction or unstable angina and/or concomitant diabetes mellitus – to improve luminal diameter and reduce restenosis within the stent and at the stent edges in native coronary arteries
Stent Diameter | 2.0 mm - 5.0 mm | |
Stent Lenght | 8 mm - 40 mm | |
Catheter Diameter | 5F | |
Catheter Lenght | 140cm | |
Radiopasity | Pt-Ir Marker | |
Applicable Guidewire | 0.014" | |
Stent Design | SS Laser Cutting | |
Nominal Pressure | 10 atm | |
Rated Brust Pressure | 20 atm | |
Drug/Quantity | Sirolimus 1µg/mm² |
Sirolimus was composed of a white to off-white crystalline powder with the empiric formula C51H79NO13 and its Molecular weight of 914.172 g/mol. It is insoluble in water and at approximately 95.0 – 110.0°C. it melts too. Polymer layers release sirolimus in a time-controlled process (ending in 8 weeks) that slowly biodegrades, preventing neointima formation in the stent. In patients with symptomatic cardiovascular disease-causing srestenosis or de novo atherosclerosis in the heart vessels measuring 2.00-5.0 mm, § Indicated in the treatment of acute or in patients at risk of cardiac occlusion after failed angioplasty balloon (PTCA) therapy of 2.00 to 5.0 heart vessels.
Detailed specifications
AtlasⓇ Coronary balloon-expandable stent system consisting of sirolimus and a biodegradable polymer. Indicated for de novo and intra-stent restenotic lesions in patients with coronary artery disease - including acute coronary syndrome, acute myocardial infarction, or unstable angina and/or concomitant diabetes mellitus - to improve luminal diameter and reduce restenosis in and in the stent. It is suitable for both femoral and radial intervention.
It is effective in occlusions in natural coronary arteries, de novo chronic total coronary occlusions, and improving coronary artery lumen diameter in patients.
The stent system is designed for reference vessel diameters from 2.00 mm to ≤ 5.00 mm, and
Shown as ≤ 40 mm lesion length.

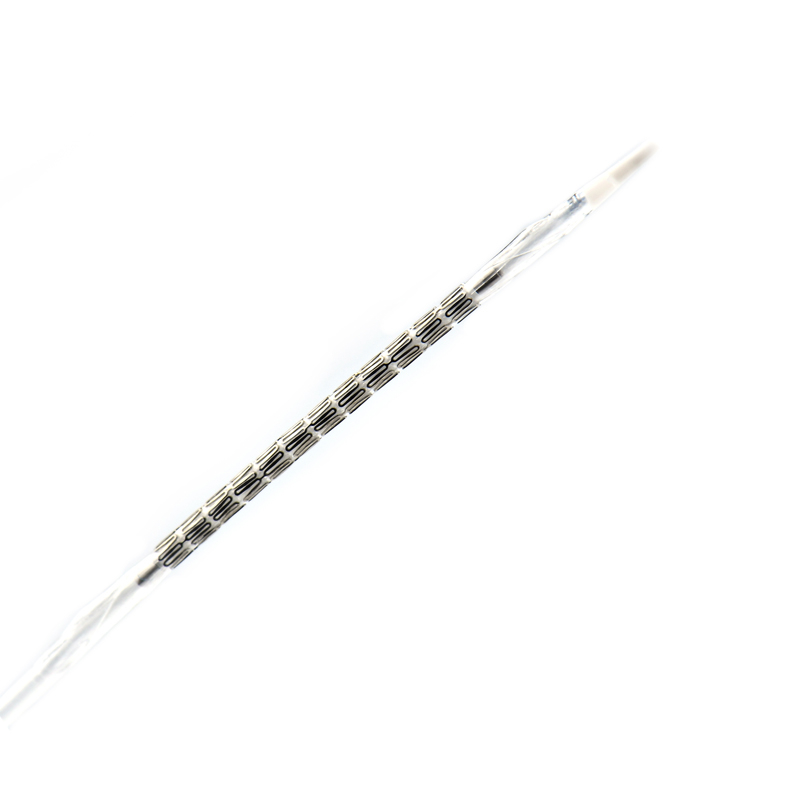

AtlasⓇ stent system easily adapts its shape to the arterial wall and does not dislocate itself after deployment. The elasticity of the stent as well as the flexibility of the delivery system allows the use of Atlas even in tortuous vessels.
The stent system is indicated reference vessel diameters of ≥ 2.25 mm to ≤ 4.25 mm and a lesion length of ≤ 27 mm
Even if the stent is overexpanded, the polymer cracks as a gradient to reduce the risk of delamination drug coating applied.
Design
• With composition and shape to support durability a specially developed tip structure.
• Durability and durability even in areas of calcification rounded shape offering pass ability.
• Risk of tip damage when navigating challenging anatomy durable material that reduces thin balloon structure and provides maximum flexibility and further lowers the curved profile
ADVANCED DESIGN
Outstanding Acute Performance
• More flexibility
• Low pass profile
• Exceptional deliverability
AtlasⓇ application system,
• Unsatisfactory outcome of a PTCA procedure (residual stenosis),
• Inner vascular membrane delamination,
• Vascular wall elasticity disorders and external pressure,
It minimizes the negative effects of the procedure by preventing the tip from being crushed or damaged when applied on occasion.
The AtlasⓇ stent system easily adapts its shape to the arterial wall and does not dislodge on its own after insertion. The flexibility of the stent and the flexibility of the delivery system allow the use of ATLAS even in convoluted vessels.
• Ideally suited to narrow and tortuous lesions
• Innovative coating for consistent and controlled drug delivery
ADVANTAGES
Loaded sirolimus reserved for narrow and tortuous vessels with new extraordinarily flexible cobalt chrome and stainless steel construction.
316 L Design
- Produced with High Laser Cutting technology,
- Increased compatibility within the unique open-cell design technology,
- Excellent radial force,
- Polymer layers provide controlled degradation and release sirolimus for up to 8 weeks,
- It shows high efficiency by providing excellent adaptation to vascular curvature.
- The special structure of the stent provides good adhesion to the arterial wall.
- Radiopaque markings on stent tips allow precise implantation
- The special construction of the delivery system ensures that even after partial stent release, a vessel and makes it possible to correct the stent position in it.
- Optimized radial force to reduce thrombosis and neointima hyperplasia
- Increased flexibility in severe cornering situations
- Precise deployment with a simplified single operator system
- Ideally suited to narrow and tortuous lesions
- Innovative coating for consistent and controlled drug delivery
- Superior flexibility and proven drug release.
Material | Stainless Steel 316L | |
Stent Diameter | 2.0 mm - 5.0 mm | |
Stent Lenght | 8 mm - 40 mm | |
Stent Thickness | 0.115mm | |
Delivery System | Rapid Exchange | |
Min. Sheath Diameter | 6Fr / 2.0mm | |
Usable Catheter Size | 140cm | |
Stent Guidewire | 0.014" | |
Stent Crimped Profile | 0.038" | |
Stent Design | SS Laser Cutting | |
Nominal Pressure | 8 - 10 atm | |
Rated Brust Pressure | 20 atm | |
Balloon Deflation Time | <60 s | |
Drug/Quantity | Sirolimus 1µg/mm² |
STENT LENGTH | ||||||||||||
Diameter | 8 mm | 10 mm | 12 mm | 15 mm | 18 mm | 22 mm | 25 mm | 29 mm | 34 mm | 36 mm | 38 mm | 40 mm |
(mm) | ||||||||||||
2.00 | CR2008SS | CR20010SS | CR20012SS | CR20015SS | CR20018SS | CR20022SS | CR20025SS | CR20029SS | CR20034SS | CR20036SS | CR20038SS | CR20040SS |
2.25 | CR2258SS | CR22510SS | CR22512SS | CR22515SS | CR22518SS | CR22522SS | CR22525SS | CR22529SS | CR22534SS | CR22536SS | CR22538SS | CR22540SS |
2.50 | CR2508SS | CR25010SS | CR25012SS | CR25015SS | CR25018SS | CR25022SS | CR25025SS | CR25029SS | CR25034SS | CR25036SS | CR25038SS | CR25040SS |
2.75 | CR2758SS | CR27510SS | CR27512SS | CR27515SS | CR27518SS | CR27522SS | CR27525SS | CR27529SS | CR27534SS | CR27536SS | CR27538SS | CR27540SS |
3.00 | CR3008SS | CR30010SS | CR30012SS | CR30015SS | CR30018SS | CR30022SS | CR30025SS | CR30029SS | CR30034SS | CR30036SS | CR30038SS | CR30040SS |
3.25 | CR3258SS | CR32510SS | CR32512SS | CR32515SS | CR32518SS | CR32522SS | CR32525SS | CR32529SS | CR32534SS | CR32536SS | CR32538SS | CR32540SS |
3.50 | CR3508SS | CR35010SS | CR35012SS | CR35015SS | CR35018SS | CR35022SS | CR35025SS | CR35029SS | CR35034SS | CR35036SS | CR35038SS | CR35040SS |
3.75 | CR3758SS | CR37510SS | CR37512SS | CR37515SS | CR37518SS | CR37522SS | CR37525SS | CR37529SS | CR37534SS | CR37536SS | CR37538SS | CR37540SS |
4.00 | CR4008SS | CR40010SS | CR40012SS | CR40015SS | CR40018SS | CR40022SS | CR40025SS | CR40029SS | CR40034SS | CR40036SS | CR40038SS | CR40040SS |
4.50 | CR4508SS | CR45010SS | CR45012SS | CR45015SS | CR45018SS | CR45022SS | CR45025SS | CR45029SS | CR45034SS | CR45036SS | CR45038SS | CR45040SS |
5.00 | CR5008SS | CR50010SS | CR50012SS | CR50015SS | CR50018SS | CR50022SS | CR50025SS | CR50029SS | CR50034SS | CR50036SS | CR50038SS | CR50040SS |
