Mantis
Rotational Thrombectomy System


TIP ROTATIONAL DIRECTIONAL PHARMACHOMECHANICAL THROMBECTOMY CATHETER


Share

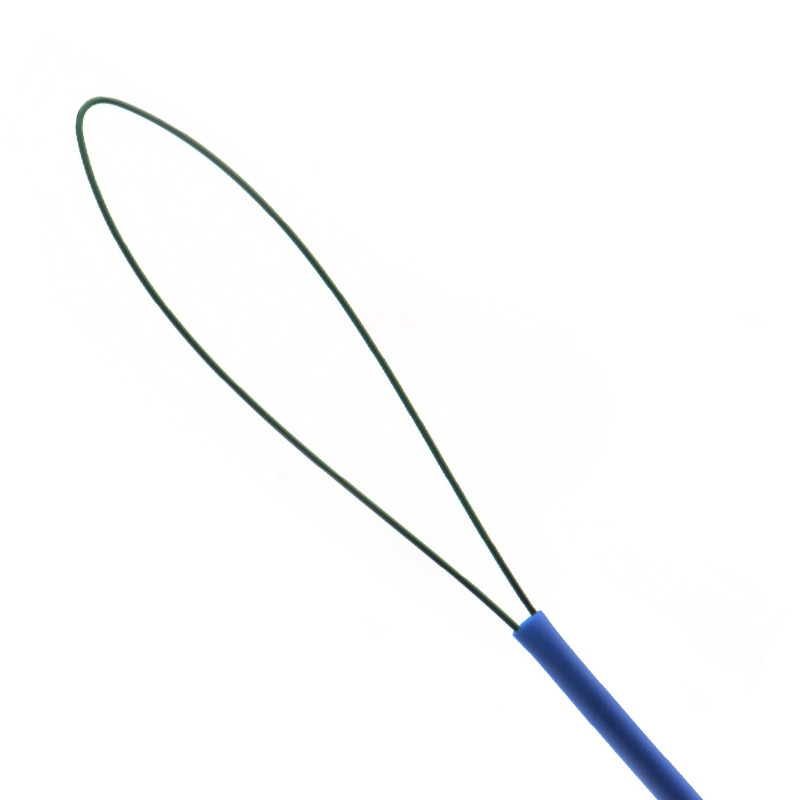

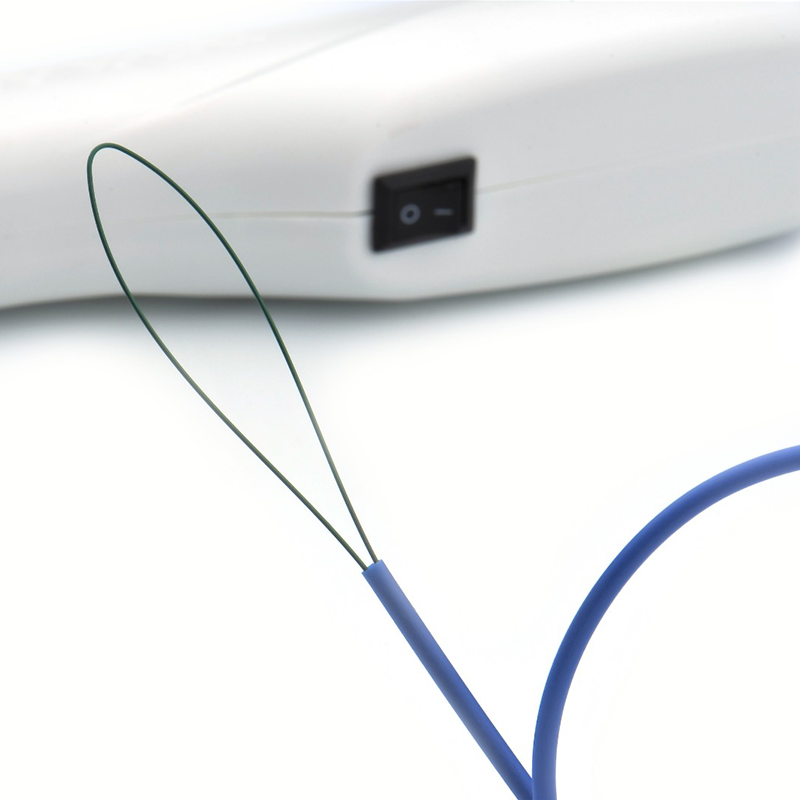

Design    Leaf Tip shape
Infusion Zone    Distal tip between leaf tip and end of the catheter
Catheter Lenght    90cm, 110cm, 135cm
Catheter Profile    5.0F & 6.0F
Radiopasity    Nitinol wire shape is visible from the distal tip to proximal shaft
Active Zone    5mm - 60 mm
Catheter Inner Layer    5mm - 60 mm
Structure of the Catheter    Nitinol shaft PA/PEBAX

Detailed specifications

Mantis Rotational Thrombectomy systems are indicated for mechanical decluttering and controlled and selective infusion of physician-specified fluids, including thrombolytics, in the peripheral vasculature.

The powerful rotating action of the single leaf tip design effectively macerates wall-adherent thrombus while reducing the risk of endothelial damage. Enables infusion of thrombolytics and contrast media through the built-in 3-way side-port and distal side. Guidewire-like design enables steerability through tortuous anatomy Choose low profile working area with adjustable leaf tip design.

SCIENTIFIC ARTICLES

  1. https://pubmed.ncbi.nlm.nih.gov/
  2. https://journals.sagepub.com/doi/abs/
  3. https://www.sciencedirect.com/science/article/abs/pii/
  4. https://amsad.termedia.pl/pdf?filename=Ararecoexistenceof.pdf

ADVANTAGES

  • Leaf-shaped tip design
  • Contacts the whole vessel lumen and affects wall adherent thrombus
  • Creates vortex effect and macerated thrombus with TPA while preventing distal embolism
  • Hydrophilic active tip
  • Preserves vessel wall
  • Excellent steerability
  • The built-in infusion port allows an infusion of TPA and contrast media
  • Tip diameter adjustment adjustable tip diameter size ranging from 5 to 20 mm
  • Allows physicians to perform treatment depending on the application area and vessel size
  • Decreases thrombolytic treatment dose significantly
  • Prevents post-thrombolytic syndrome significantly
  • Decreases length of stay in hospital
  • No capital equipment Quick Setup



Design    Leaf Tip shape
Infusion Zone    Distal tip between leaf tip and end of the catheter
Catheter Lenght    90cm, 110cm, 135cm
Catheter Profile    5.0F & 6.0F
Radiopasity    Nitinol wire shape is visible from the distal tip to proximal shaft
Active Zone    5mm - 60 mm
Catheter Inner Layer    5mm - 60 mm
Structure of the Catheter    Nitinol shaft PA/PEBAX
Order Number Catheter Diameter Working Length Treatment Zone
CR1026 5.0 Fr  100 cm 6 cm
CR1027 5.0 Fr  100 cm 12 cm
CR1028 5.0 Fr  100 cm 18 cm
CR1029 5.0 Fr  100 cm 24 cm
CR1030 5.0 Fr  100 cm 30 cm
CR1031 5.0 Fr  100 cm 40 cm
CR1032 5.0 Fr  100 cm 50 cm
CR1033 5.0 Fr  135 cm 12 cm
CR1034 5.0 Fr  135 cm 30 cm
CR1035 5.0 Fr  135 cm 40 cm
CR1036 5.0 Fr  135 cm 50 cm
CR1037 5.0 Fr  150 cm 12 cm
CR1038 5.0 Fr  150 cm 30 cm
CR1039 5.0 Fr  150 cm 40 cm
CR1040 5.0 Fr  150 cm 50 cm
