Delta
Modulator Renal Denervation for Hypertension

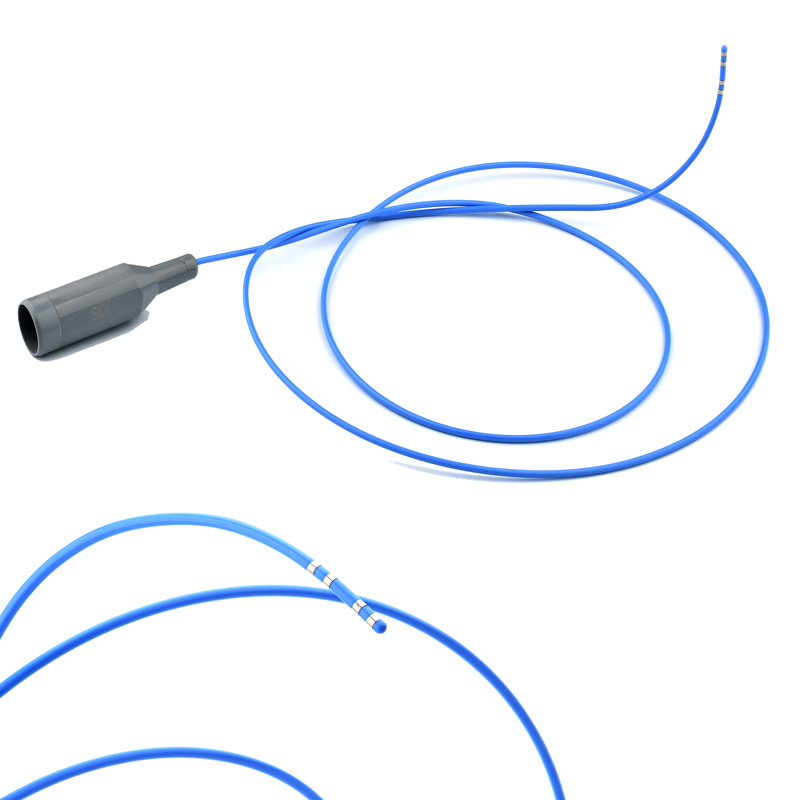

During renal sympathetic denervation, a catheter is introduced using standard interventional technique via the femoral artery and is positioned in the renal artery under fluoroscopic guidance.
Catheter | 6 F guide catheter compatible | |
Electrodes | 4 RF monopolar, radio-opaque, 1.5 mm long | |
Thermocoupler | T type | |
Type Designation | Platinum/iridium alloy | |
Sleeve | Injection molded | |
Treatment Length | 17–21 mm (if all electrodes are activated) | |
Tip Length | 5 mm | |
Tip Marker | 1 mm proximal of distal tip | |
Femoral shaft marker | 55 cm from distal tip | |
Vessel diameter treatment range | 3–8 mm |
Delta Renal Denervation RF generator is designed to deliver low-level radio frequency (RF) energy through catheters through the renal artery wall to provide renal denervation. Components; It consists of a disposable single-channel catheter, generator, remote control, and optional foot pedal. Delta is used to transmit RF energy to a target area. The footswitch provides simple, hands-free RF activation of the system, while the remote control provides a method for RF activation from the sterile field.
Detailed specifications
Delta Modulator Renal Denervation for Hypertension
Delta provides catheter-based sympathetic denervation of the kidneys, helping to stabilise systolic/diastolic blood pressure in patients with treatment-resistant hypertension.
Designed for simplicity and versatility
Renal sympathetic nerves play a key role in the regulation of blood pressure and are often implicated in the pathogenesis of hypertension, a condition characterised by greatly elevated renal sympathetic nerve activity (RSNA).
Renal denervation is the best way to treat hypertension
A unique, therapeutic, unfocussed Rf system for performing renal denervation .

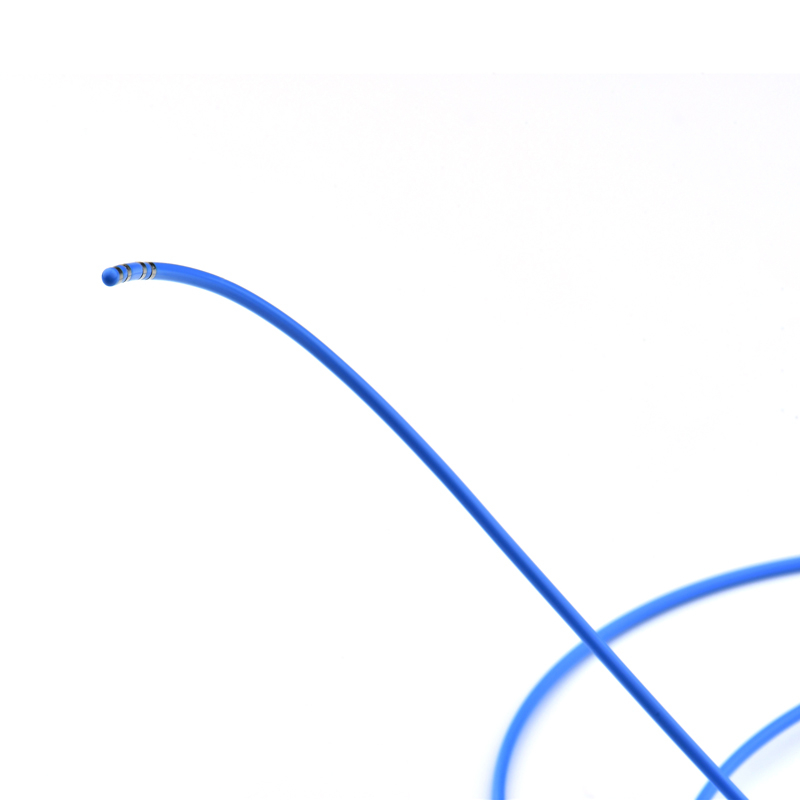

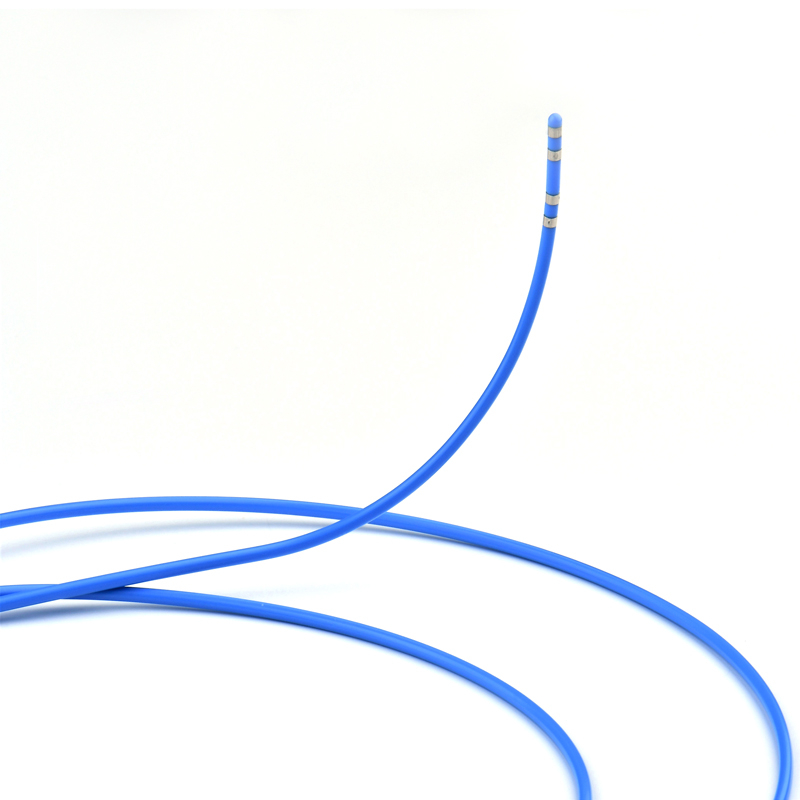

Radiofrequency (RF) energy is applied through the lumen of the renal artery with Delta to modulate the renal nerves. The device delivers low-power RF energy along the artery wall through the electrode tip of a flexible, steerable catheter.
The device catheter is designed using a helical electrode pattern to simultaneously ablate the entire region of the vessel.
- Catheter: 6 F guide catheter compatible

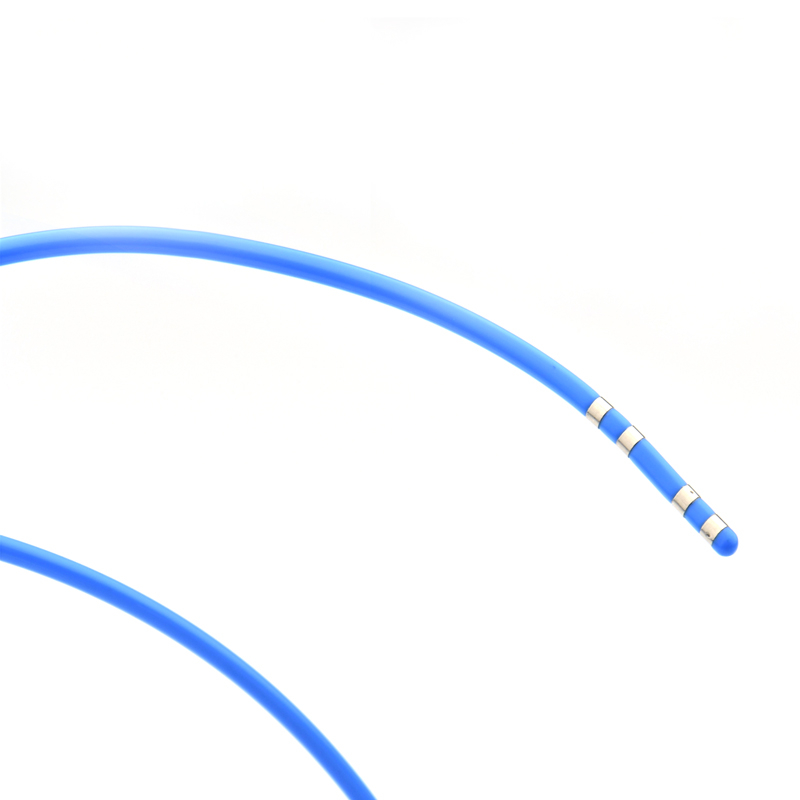

- Electrodes: 4 RF monopolar, radio-opaque, 1.5 mm long
- Thermocouple: T type
- Type designation: platinum/iridium alloy
- Sleeve: injection molded
- Integrated extension cable for connection Modulator Renal Denervation RF generator
- Treatment length: 17–21 mm if all electrodes are activated
- Tip Length: 5 mm
- Tip marker: 1 mm proximal of the distal tip
- Femoral shaft marker: 55 cm from the distal tip
- Vessel diameter treatment range: 3–8 mm
Stent Diameter | 2.0 mm - 5.0 mm | |
Stent Lenght | 8 mm - 40 mm | |
Catheter Diameter | 5F | |
Catheter Lenght | 140cm | |
Radiopasity | Pt-Ir Marker | |
Applicable Guideware | 0.014" | |
Stent Design | SS & CoCr Laser Cutting | |
Nominal Pressure | 10 atm | |
Rated Brust Pressure | 18 atm |
Order Number | Catheter diameter | Electrodes | Treatment length | Tip length | Tip Marker |
CR1049 | 6.0 Fr | 4 RF monopolar | 17–21 mm | 5 mm | 1 mm |
