Lotus PTCA
Microcatheter (Double & Single & Torque)

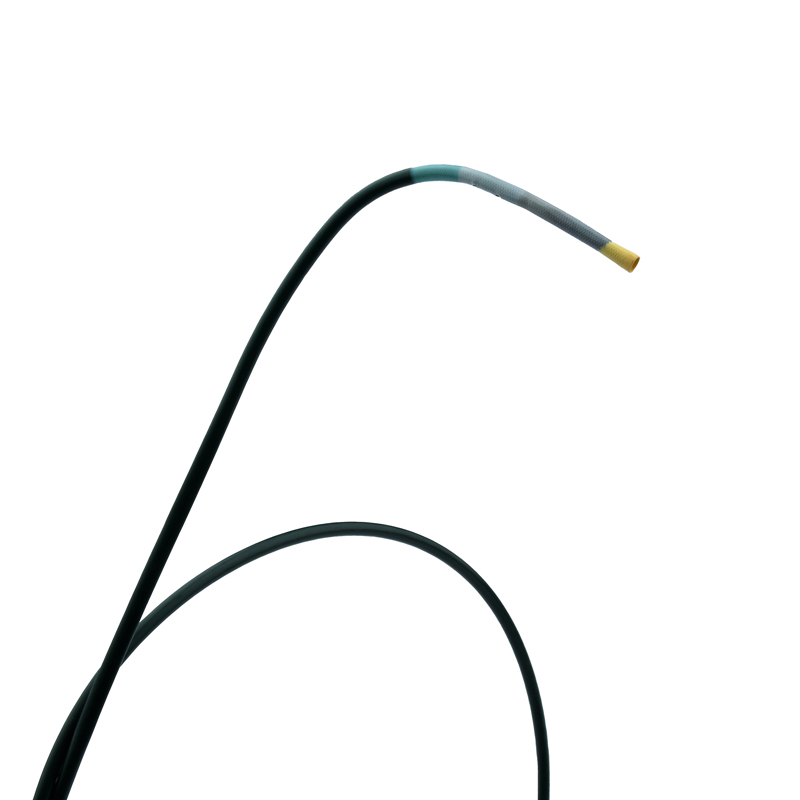

LotusPTCAⓇ Micro Catheter products are a family of single lumen or double lumen catheters designed for use in the Coronary vascular system.

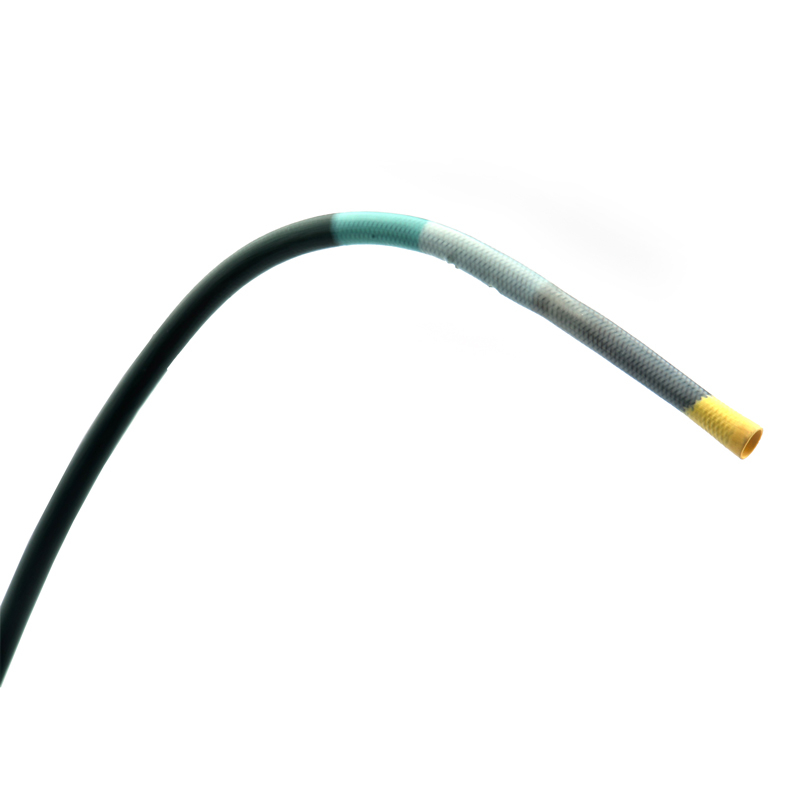

Braided microcatheter for the facilitated penetration of heavily calcified lesions
Lotus PTCA Micro Catheter products are a family of single lumen or double lumen catheters designed for use in the Coronary vascular system. The surface of the distal part of this product shaft is coated with a hydrophilic coating. There is also a radiopaque marker between the product shaft and tip, which allows the user to view the tip position under x-ray fluoroscopy.
PTCA Micro Catheter products are single lumen catheters designed for use in the coronary and/or peripheral vasculature. This product consists of a distal tip, a shaft tube, a shield, and a connector. It is made of hydrophilic material. The tip is radiopaque and the distal edge has a distinguishable coil structure from the tip. It moves easily within the lesion with its tip structure and hydrophilic surface. Compatible with 0.014” wire.
Detailed specifications
The surface of the distal part of this product shaft is coated with a hydrophilic coating. There is also a radiopaque marker between the product shaft and tip, which allows the user to view the tip position under x-ray fluoroscopy. It progresses easily in chronic total occlusions and vascular stenosis with its atraumatic tip structure and hydrophilic surface. It is used to pass occluded lesions in coronary applications. Compatible with wires of 0.018” and smaller diameters.
It is a quick-change guidewire support catheter attached to the lumen and distal tip on a wire extending the length of the catheter.
Indicated for patients with coronary artery disease (CAD) undergoing PCI.
It is recommended for occlusion insertion, stent and balloon applications, guide wire replacement and infusion devices designed for use in the coronary vascular system. Catheters are designed to support a guidewire during access to the vasculature, to allow guidewire and catheter exchanges and access, and to provide a passageway for the delivery of saline solutions and/or diagnostic contrast agents
LotusPTCAⓇ Micro Catheter products are a family of single lumen or double lumen catheters designed for use in the Coronary vascular system. The surface of the distal part of this product shaft is coated with a hydrophilic coating. There is also a radiopaque marker between the product shaft and tip, which allows the user to view the tip position under x-ray fluoroscopy.
Braided microcatheter for the facilitated penetration of heavily calcified lesions
LotusPTCAⓇ Micro Catheter products are a family of single lumen or double lumen catheters designed for use in the Coronary vascular system. The surface of the distal part of this product shaft is coated with a hydrophilic coating. There is also a radiopaque marker between the product shaft and tip, which allows the user to view the tip position under x-ray fluoroscopy.
Order Number | Design | Distal Outer Diameter | Distal Inner Diameter | Usable Lenght | Guidewire compatibility |
VS1175 | Single Lumen | 4 Fr | 0.018" | 120 cm | 0.014" |
VS1176 | Single Lumen | 4 Fr | 0.018" | 135 cm | 0.014" |
VS1177 | Single Lumen | 4 Fr | 0.018" | 150 cm | 0.014" |
VS1178 | Double Lumen | 4 Fr | 0.018" | 120 cm | 0.014" |
VS1179 | Double Lumen | 4 Fr | 0.018" | 135 cm | 0.014" |
VS1180 | Double Lumen | 4 Fr | 0.018" | 150 cm | 0.014" |
VS1181 | Torque | 3 Fr | 0.021" | 120 cm | 0.014" |
VS1182 | Torque | 3 Fr | 0.021" | 135 cm | 0.014" |
VS1183 | Torque | 3 Fr | 0.021" | 150 cm | 0.014" |
