Dovi
ThromboJET Aspiration System

Dovi represents a cutting-edge aspiration catheter that aims to achieve an optimal blend of crossing efficiency, resistance to kinking, and the ability to aspirate thrombus.


Share

Voltage     100-240 VAC
Frequency    50Hz - 60Hz
Current    2.0 A
Fuse    Two 2 A, 5 X 20 mm, Start-up Speed Type T(Time-delay fuse)
Cut-off Capacity   Cutting Capacity 1500 A; at 250 VAC (T2A H 250VAC)
Port Output   5-20 VDC, 3.0 A
Motor and Pump Description   Oil-free, diaphragm pump
Vacuum Range    80 - 550 mmHg
Output power    0 - 27 /min
Dimensions     18 x 23 x 20 cm
Weight   1.7kg (not including AC-DC adapter)
Battery Capacity   60 min
Disposable Collection Container Capacity   800ml(cc)

Detailed specifications

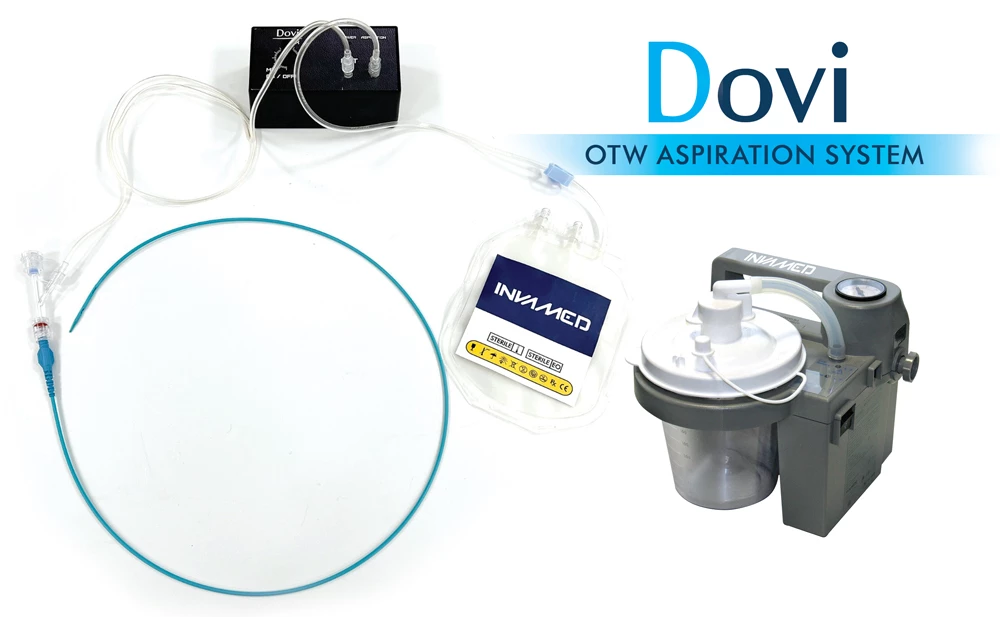

DOVI ASPIRATION SYSTEM

  • CATHETER, THROMBOASPIRATION, PERIPHERAL, DIRECTLY ADVANCED, COMBINED WITH MOTOR
  • The Dovi Aspiration System is used to remove a blood clot and restore blood flow to blocked vessels for patients suffering from vascular occlusion.
  • The catheter is designed and proven to dissolve small, fresh thrombi in peripheral vessels.
  • Dovi is an innovative aspiration catheter designed to provide a balance between decreasing performance, bending resistance, and thrombus-aspiration capacity.

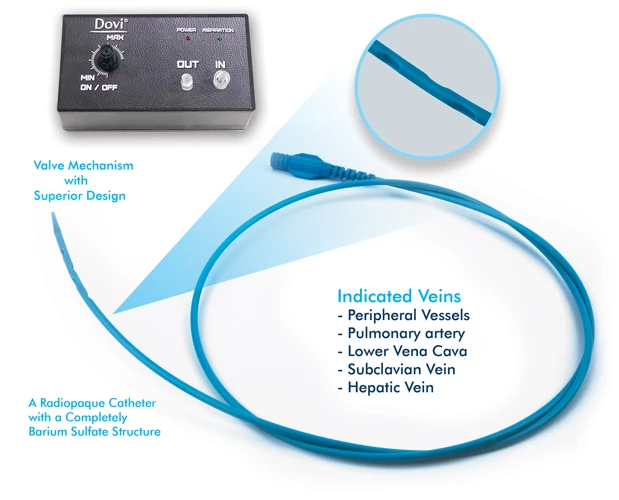

Indicated Veins

  • Peripheral Vessels
  • Pulmonary artery
  • Lower Vena Cava
  • Subclavian Vein
  • Hepatic Vein

ASPIRATION CATHETER

  • Optimized tip design
  • Strong washability and superior fracture resistance
  • Large directional extraction lumens that provide better aspiration
  • The side aspiration window allows efficient aspiration of the thrombus adhered to the wall
  • DOVI Aspiration Catheter restores flow with high-performance aspiration power.

SCIENTIFIC ARTICLES

  1. https://www.sciencedirect.com/science/article/abs/pii
  2. https://journals.sagepub.com/doi
  3. https://www.sciencedirect.com/science/article/abs/pii
  4. Emre-Selcuk-3/publication/Our_Treatment_Outcomes_in_Patients_with_Acute_Deep_Vein
  5. profile/Serdar-Gunaydin-2/publicationFarmakomekanik_aracili_tromboliz_ile_tedavi_edilen_akut_ilyofemoral_derin_ven_trombozlu

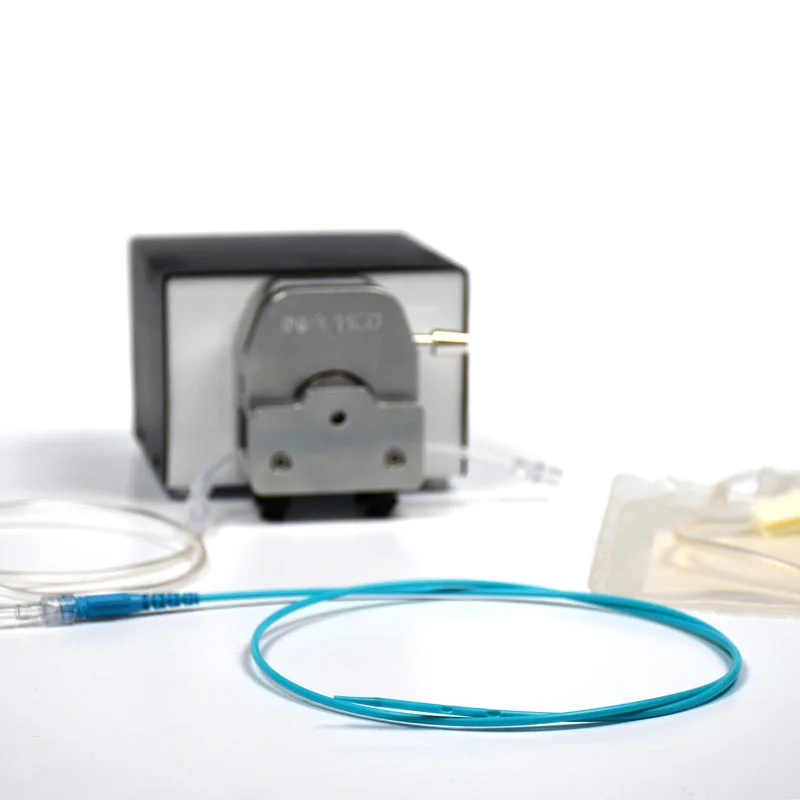

ASPIRATION DEVICE

  • Large vacuum gauge.
  • The handheld mechanical aspirator continuously aspirates the volume with speed, force, and control.
  • Quickly discharge the activated air, allowing the user to instantly increase and decrease the force without accidentally re-injecting the aspirator.

Voltage     100-240 VAC
Frequency    50Hz - 60Hz
Current    2.0 A
Fuse    Two 2 A, 5 X 20 mm, Start-up Speed Type T(Time-delay fuse)
Cut-off Capacity   Cutting Capacity 1500 A; at 250 VAC (T2A H 250VAC)
Port Output   5-20 VDC, 3.0 A
Motor and Pump Description   Oil-free, diaphragm pump
Vacuum Range    80 - 550 mmHg
Output power    0 - 27 /min
Dimensions     18 x 23 x 20 cm
Weight   1.7kg (not including AC-DC adapter)
Battery Capacity   60 min
Disposable Collection Container Capacity   800ml(cc)
Order Number Catheter Diameter Working Length Distal tip hole length
CR1041 3.4 Fr  150 cm 4 mm
CR1042 5.0 Fr  132 cm 7 mm
CR1043 6.0 Fr  115 cm 7 mm
CR1044 6.0 Fr  135 cm 7 mm
