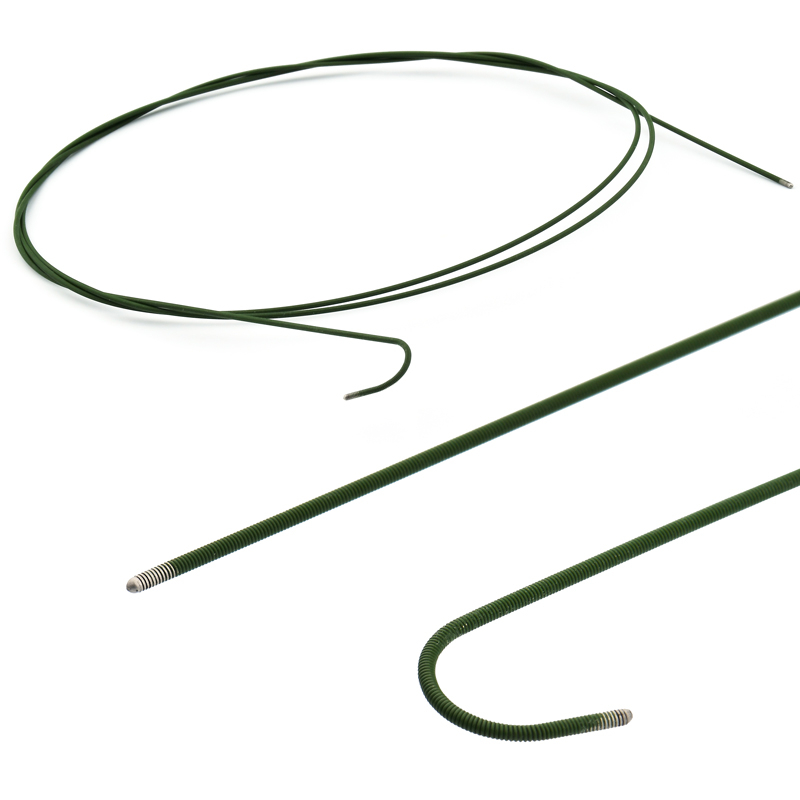

InWIRE
0.014" & 0.018" PTCA Guidewire
Unique Solution for PTCA and PTA and consists of an elastic nitinol core wire
- Easy steerability.
- Flat,malleable tip
- Hydrophilic polymer coating
- Radio-opeque tip
- Torque Capability
Detailed specifications

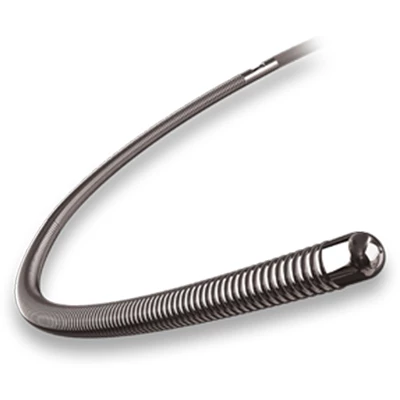

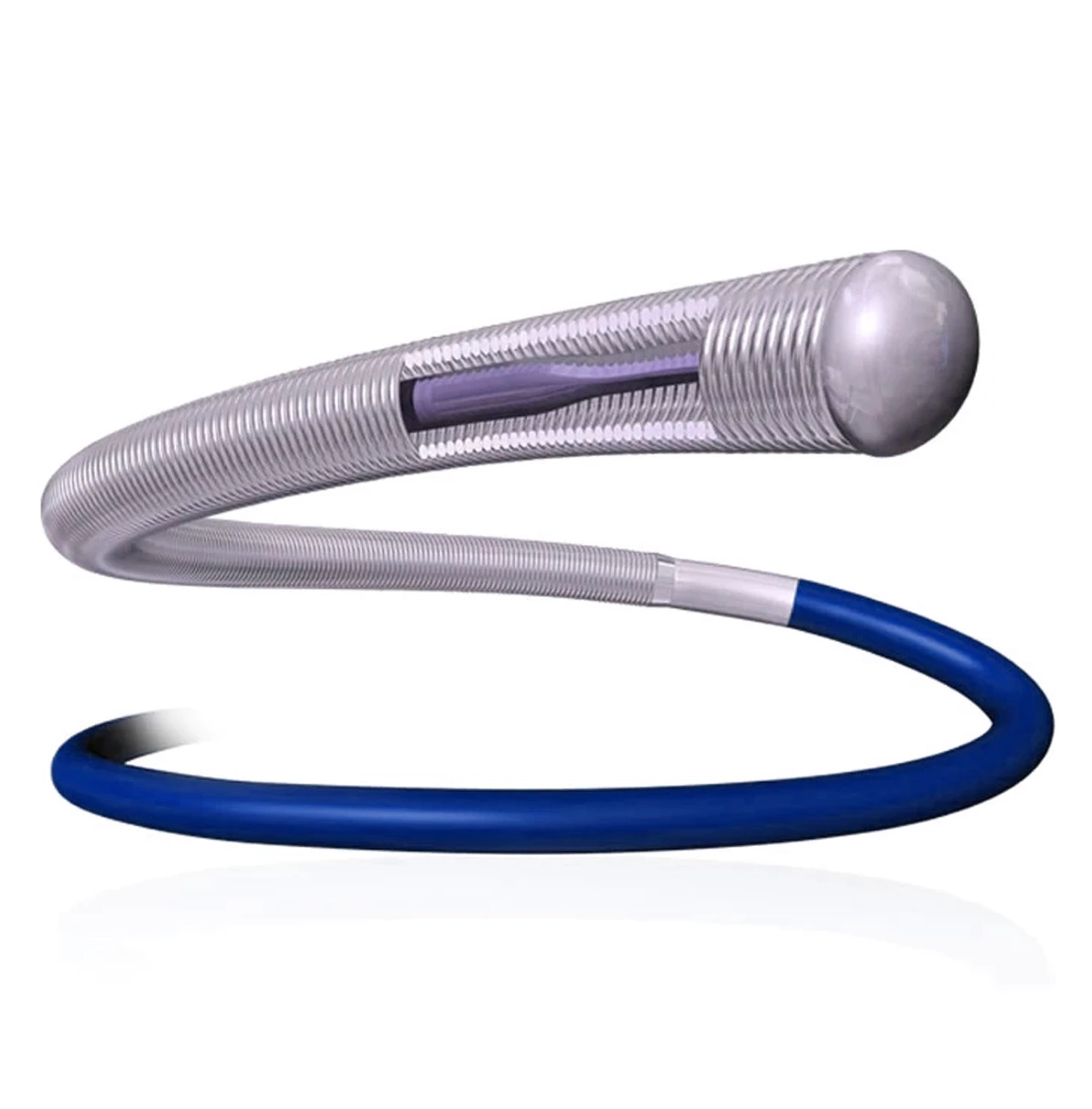

The INVAMED Angioplasty Guide Wire is a guide wire for use in PTCA and PTA and consists of an elastic nitinol core wire. The guide or platinum/iridium alloy helix provides radiopacity at the distal end under high-resolution fluoroscopy. There is a hydrophilic polymer coating on the distal surface that creates high lubricity. It has a non-damaging flexible tip and a slippery body structure. The distal 3 cm portion of the tip is radiopaque.
Excellent Torque Capability
Elastic tip and integrated design target vein to deliver quickly.
Allows 1:1 torque response.
They are guide wires used for diagnosis or intervention device insertion and recanalization in coronary and peripheral vessels. They are used to reach and pass the lesion in a target lesion.
Guidewires are Orientable
They have various lengths and configurations.
Hydrophilic Coating
Provides a durable and smooth progression possible even with curved veins.
Superior Extensibility
Durable progression is possible even in the most difficult lesion.
Unique Solution for PTCA and PTA and consists of an elastic nitinol core wire
- Easy steerability.
- Flat, malleable tip
- Hydrophilic polymer coating
- Radio-opaque tip
- Torque Capability
Order Number | Diameter | Lenght | Tip Design | Tip Weight | Tip Shaping Part | Support | Coating |
VS1226 | 0.014” | 260 | Extra Floppy | 0,6 grf | 10 mm | Extra Support | Hydrophilic |
VS1227 | 0.014” | 180 | Extra Floppy | 0,6 grf | 10 mm | Extra Support | Hydrophilic |
VS1228 | 0.014” | 260 | Floppy | 1 grf | 10 mm | Light | Hydrophilic |
VS1229 | 0.014” | 180 | Floppy | 1 grf | 10 mm | Light | Hydrophilic |
VS1230 | 0.014” | 260 | Intermediate | 3.6 grf | 10 mm | Extra Support | Hydrophilic |
VS1231 | 0.014” | 180 | Intermediate | 3.6 grf | 10 mm | Extra Support | Hydrophilic |
VS1232 | 0.018” | 260 | Extra Floppy | 0,6 grf | 10 mm | Extra Support | Hydrophilic |
VS1233 | 0.018” | 180 | Extra Floppy | 0,6 grf | 10 mm | Extra Support | Hydrophilic |
VS1234 | 0.018” | 260 | Floppy | 1 grf | 10 mm | Light | Hydrophilic |
VS1235 | 0.018” | 180 | Floppy | 1 grf | 10 mm | Light | Hydrophilic |
VS1236 | 0.018” | 260 | Intermediate | 3.6 grf | 10 mm | Extra Support | Hydrophilic |
VS1237 | 0.018” | 180 | Intermediate | 3.6 grf | 10 mm | Extra Support | Hydrophilic |
