DolphinXS
Support Catheter
Expands treatment possibilities by combining unique lesion measurement capabilities with optimal pushability and a low tip entry profile
Easy & Fast Passage in Non-Permeable Vessel Segments
Used to switch from Occlusion to True lumen. It is dedicated to reaching and overcoming complex lesions of the difficult anatomy during femoro-popliteal and below-knee interventions.

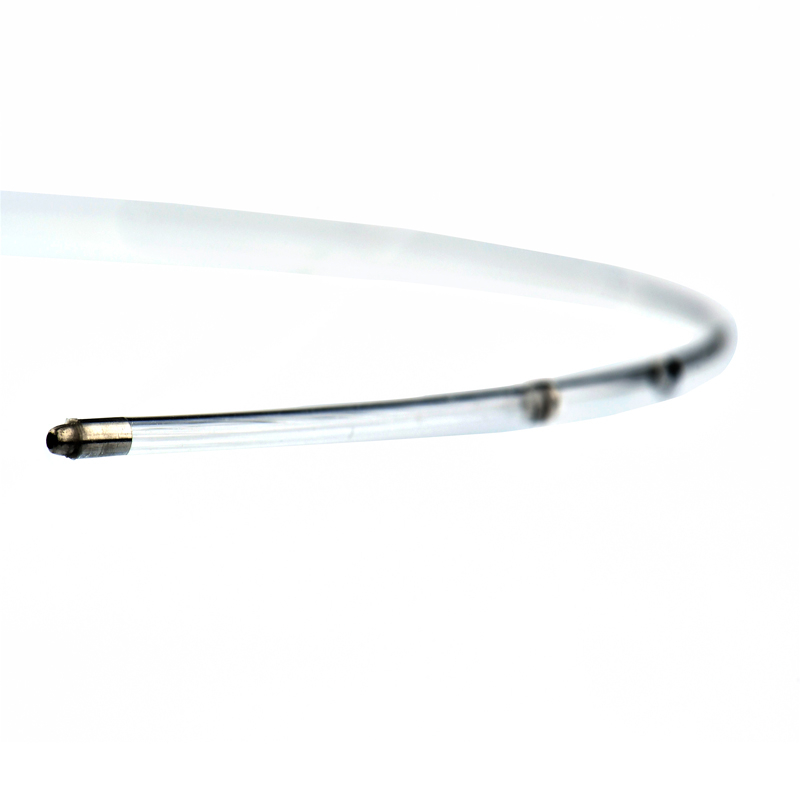

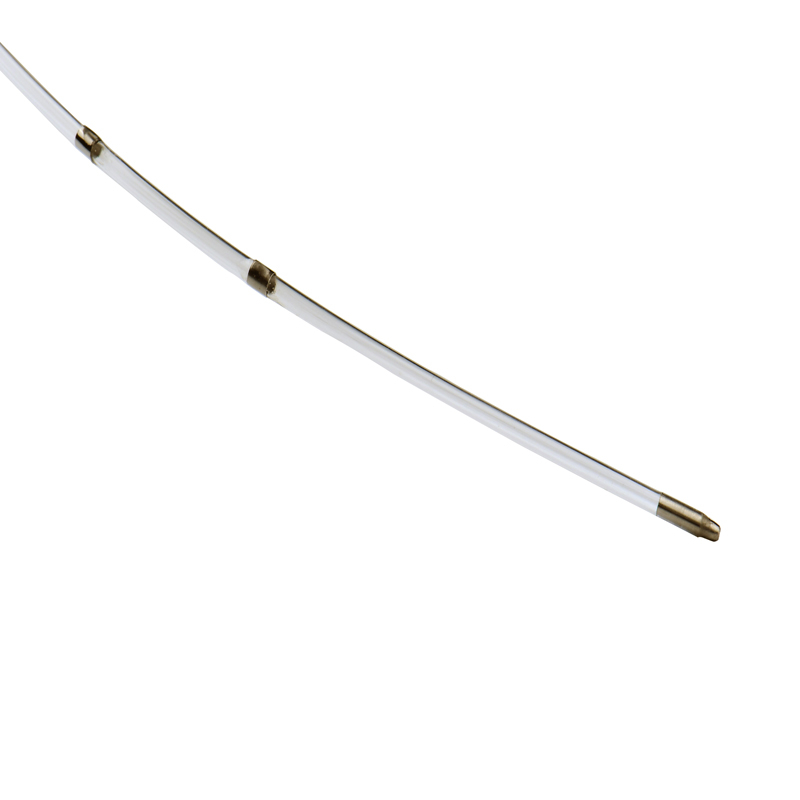

INVAMED Dolphin Support Catheter is used for transition from occlusion to true lumen. It consists of an over-the-wire catheter with a fixed hub. Radiopaque markings indicate the distal end of the catheter and assist in catheter placement and measurement of lesion length. The catheter includes an atraumatic tip to assist advancement towards and through peripheral vasculature stenosis and chronic total occlusions. The catheter has a hydrophilic coating used to provide lubrication. Over-thewire catheter is compatible with 0.014" (0.356 mm), 0.018" (0.457 mm), and 0.035" (0.889 mm) guidewires and is available in working lengths of 90 cm. The proximal portion of the catheter includes a Luer hub connected to the catheter lumen. Distal of the catheter The part contains a 1 cm long metal tip and 2 radiopaque markings positioned at 20mm intervals along 60mm.
Detailed specifications
DolphinXSⓇ Support Catheter is used to switch from Occlusion to True lumen. It is dedicated to reaching and overcoming complex lesions of the difficult anatomy during femoropopliteal and below-knee interventions.
- Ultra-low lesion entry profile
- Increases lesion access and entry
- Delivered and replaced with guide wires
Hydrophilic Coating 40 cm Distally
Ensures best-in-class trackability in challenging anatomy and
It provides best-in-class traceability and excellent crossability of complex lesions in challenging anatomy.
Provides improved delivery and access to distal lesions and complex and small vessels.
It is designed to reach the narrowest and most muscular stenotic lesions with its unique tapered entry profile and facilitate passage.
With an ultra-low lesion entry profile, a powerful next-generation distal tip for superior thrust, and radiopaque markers, it is designed for perfect crossover, giving you every advantage in combating challenging lesions.
High bending resistance with excellent torque control and optimum push through from proximal shaft to the distal end
Small Pass Profile and Tapered Tip
Provides continuous guide wire-catheter passage for high support and successful lesion passage.
Easy & Fast Passage in Non-Permeable Vessel Segments
Used to switch from Occlusion to True lumen. It is dedicated to reaching and overcoming complex lesions of the difficult anatomy during femoropopliteal and below-knee interventions.
| Order Number | Device outer diameter | Working Length | RO | Guidewire Compatibility |
| VS1109 | 4.0 Fr | 90 cm | 30 cm | 0.014" |
| VS1110 | 4.0 Fr | 135 cm | 30 cm | 0.014" |
| VS1111 | 4.0 Fr | 150 cm | 30 cm | 0.014" |
| VS1112 | 5.0 Fr | 90 cm | 30 cm | 0.014" |
| VS1113 | 5.0 Fr | 135 cm | 30 cm | 0.014" |
| VS1114 | 5.0 Fr | 150 cm | 30 cm | 0.014" |
| VS1115 | 4.0 Fr | 90 cm | 30 cm | 0.018" |
| VS1116 | 4.0 Fr | 135 cm | 30 cm | 0.018" |
| VS1117 | 4.0 Fr | 150 cm | 30 cm | 0.018" |
| VS1118 | 5.0 Fr | 90 cm | 30 cm | 0.018" |
| VS1119 | 5.0 Fr | 135 cm | 30 cm | 0.018" |
| VS1120 | 5.0 Fr | 150 cm | 30 cm | 0.018" |
| VS1121 | 6.0 Fr | 90 cm | 30 cm | 0.018" |
| VS1122 | 6.0 Fr | 135 cm | 30 cm | 0.018" |
| VS1123 | 6.0 Fr | 150 cm | 30 cm | 0.018" |
| VS1124 | 5.0 Fr | 90 cm | 30 cm | 0.035" |
| VS1125 | 5.0 Fr | 135 cm | 30 cm | 0.035" |
| VS1126 | 5.0 Fr | 150 cm | 30 cm | 0.035" |
| VS1127 | 6.0 Fr | 90 cm | 30 cm | 0.035" |
| VS1128 | 6.0 Fr | 135 cm | 30 cm | 0.035" |
| VS1129 | 6.0 Fr | 150 cm | 30 cm | 0.035" |
