DeliveryCATH
Catheter

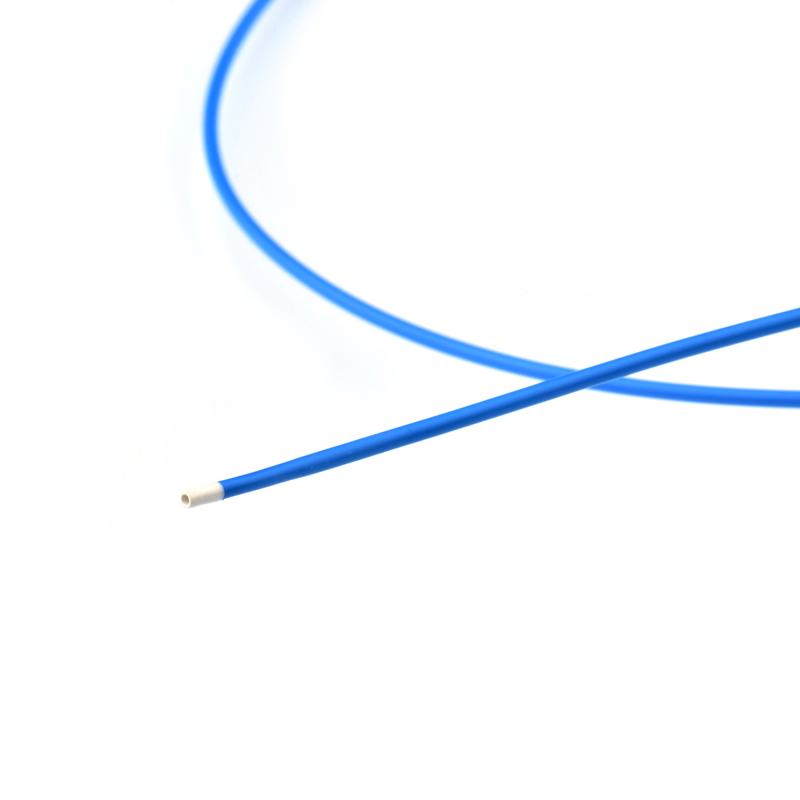

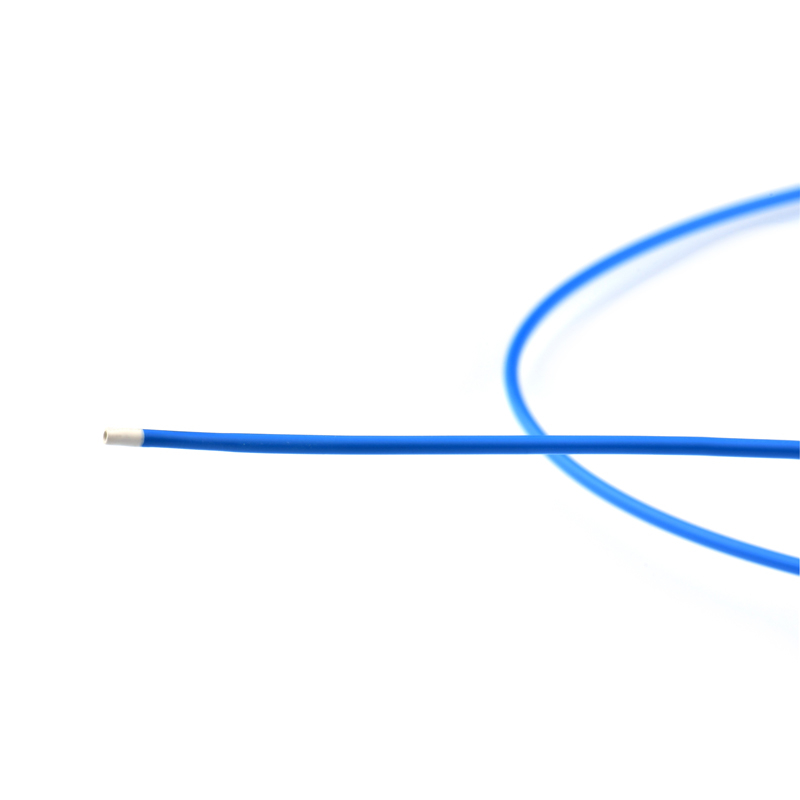

DeliveryCath Catheter is a variable stiffness, single lumen catheter designed to access small, tortuous vascular areas. The outer surface of the catheter’s distal segment is coated with a hydrophilic material to provide lubricity during use.
Designed To Access Small, Convoluted Vascular Spaces
| Usable length | 90 cm, 100 cm, 150 cm | |
| Tip Lenght (cm) | 10 cm | |
| Tip Shape | Straight tip | |
| Catheter Profile Proximal | 3.2F | |
| Catheter Profile Distal | 2.8F | |
| Radiopaque Marker | 1 mm located at 2 mm from the tip | |
| Guidewire Compatibility | 0.018", 0.021" | |
| Structure of the Catheter | PE/PEBAX |
Invamed DeliverCath Catheter is a single lumen, flexible, variable stiffness composite catheter. The catheter shaft has a hydrophilic coating to reduce friction during use. The DeliverCath Catheter shaft is visible under fluoroscopy. DeliverCath Catheter dimensions are included on the individual device label. DeliverCath Catheter inner lumen can accommodate guide wires up to 0,027” inches in diameter to aid in the placement of the catheter system. The proximal end of the DeliverCath Catheter has a Luer fitting to allow attachment of accessories and infusion of liquids through the system. DeliverCath Catheter is offered in various sizes to accommodate physician preferences and anatomical variations.
Detailed specifications
The catheter also incorporates a PTFE liner to facilitate movement or introduction devices passed through its lumen. DeliveryCATHⓇ Catheter has a radiopaque marker at the distal tip to facilitate fluoroscopic visualization. The distal tip of the catheter is shapeable. DeliveryCATHⓇ is intended for the introduction of interventional devices and infusion of diagnostic or therapeutic agents into the neuro, peripheral, and coronary vasculature.
Flexibility and Stability
DeliveryCATHⓇ micro-catheter follows convoluted anatomy maintains its stability
Stainless Steel Braided Structure
Braided support from proximal to last 35 cm
Stable design for optimized device delivery
Pebax Outer Sheath High Radial Strength
3 different Pebax layers for optimized proximal support and distal flexibility
PTFE Inner Lining
Ensuring minimum friction for optimized device delivery
Stainless Steel Coil Design
Variable pitch Coil design for enhanced flexibility Pebax Outer Sheath and radial power
Coil and braid technology combine to produce an ovalization-resistant catheter in convoluted anatomy.
| Usable length | 90 cm, 100 cm, 150 cm | |
| Tip Lenght (cm) | 10 cm | |
| Tip Shape | Straight tip | |
| Catheter Profile Proximal | 3.2F | |
| Catheter Profile Distal | 2.8F | |
| Radiopaque Marker | 1 mm located at 2 mm from the tip | |
| Guidewire Compatibility | 0.018", 0.021" | |
| Structure of the Catheter | PE/PEBAX |
| Order Number | Proximal Outer Diameter | Distal Outer Diameter | Distal Inner Diameter | Usable Lenght | Max Guidewire compatibility | Distal Tip Lenght |
| VS1170 | 3.2 Fr | 2.8 Fr | 0,027” (0.7mm) | 100 cm | 0,021” | 10 cm |
| VS1171 | 3.2 Fr | 2.8 Fr | 0,027” (0.7mm) | 150 cm | 0,021” | 10 cm |
| VS1172 | 3.2 Fr | 2.8 Fr | 0,023” (0.6mm) | 90 cm | 0,018” | 10 cm |
| VS1173 | 3.2 Fr | 2.8 Fr | 0,023” (0.6mm) | 90 cm | 0,018” | 10 cm |
| VS1174 | 3.2 Fr | 2.8 Fr | 0,021” (0.5mm) | 150 cm | 0,018” | 10 cm |
