Spider
Detectable Coil
SpiderⓇ detachable coils are intended for the endovascular embolization of intracranial aneurysms. Also intended for the embolization of other neurovascular abnormalities such as arteriovenous malformations and arteriovenous fistulae.
Material | Platinium | |
Diameter (mm) | From 1,5 to 20 mm | |
Lenght (cm) | From 1 to 50 cm | |
Coil O.D.(inch) | 0.0115”, 0.0135” | |
OD(mm) | From 0,2921 to 0,3683 | |
Volume(mm) | From 0,67 to 53,27 | |
Detectable Tip | Pushable-Mechanically |

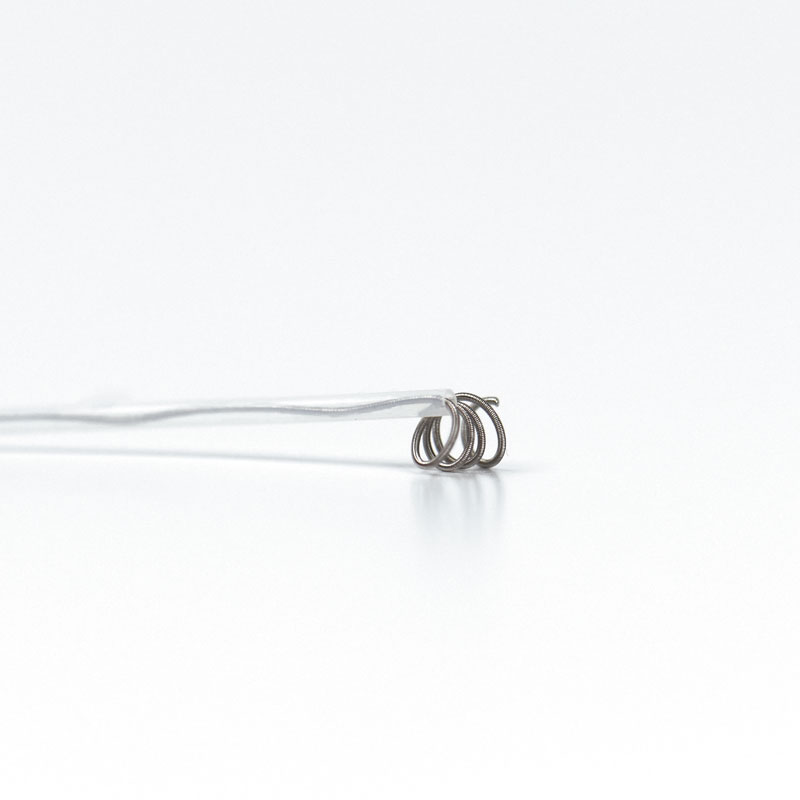

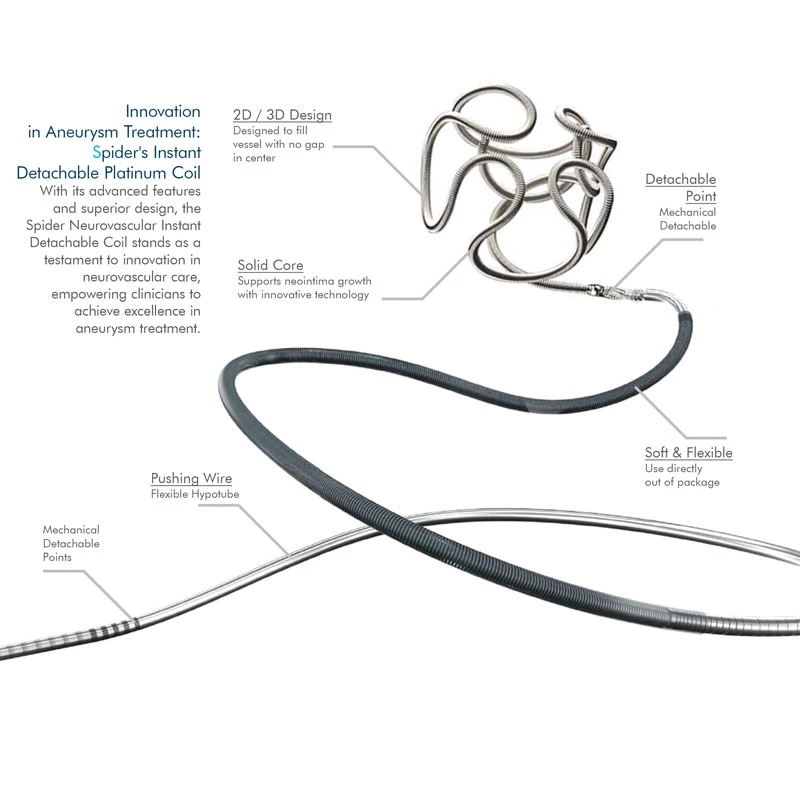

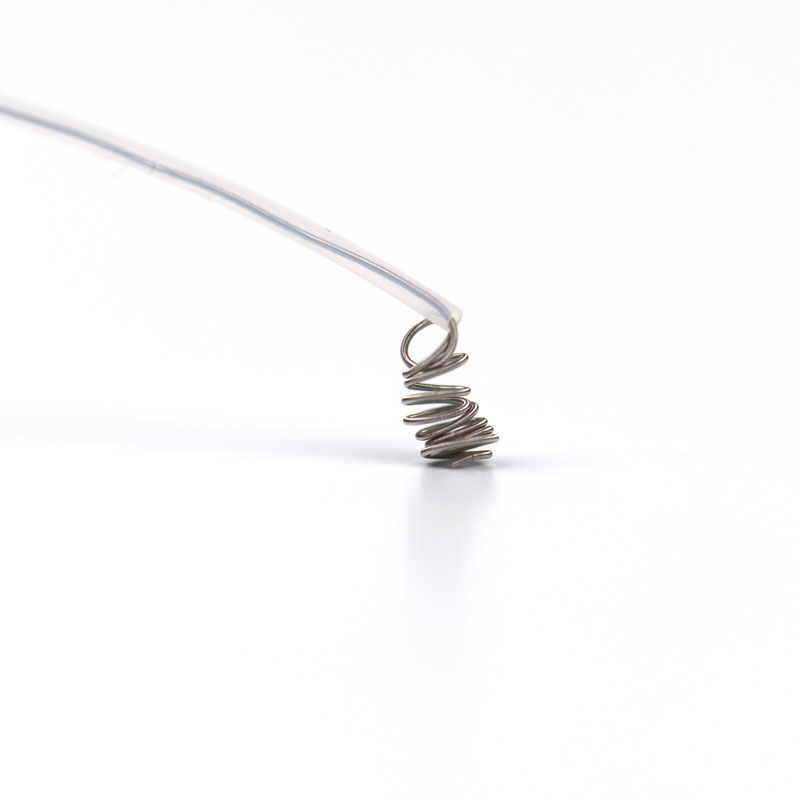

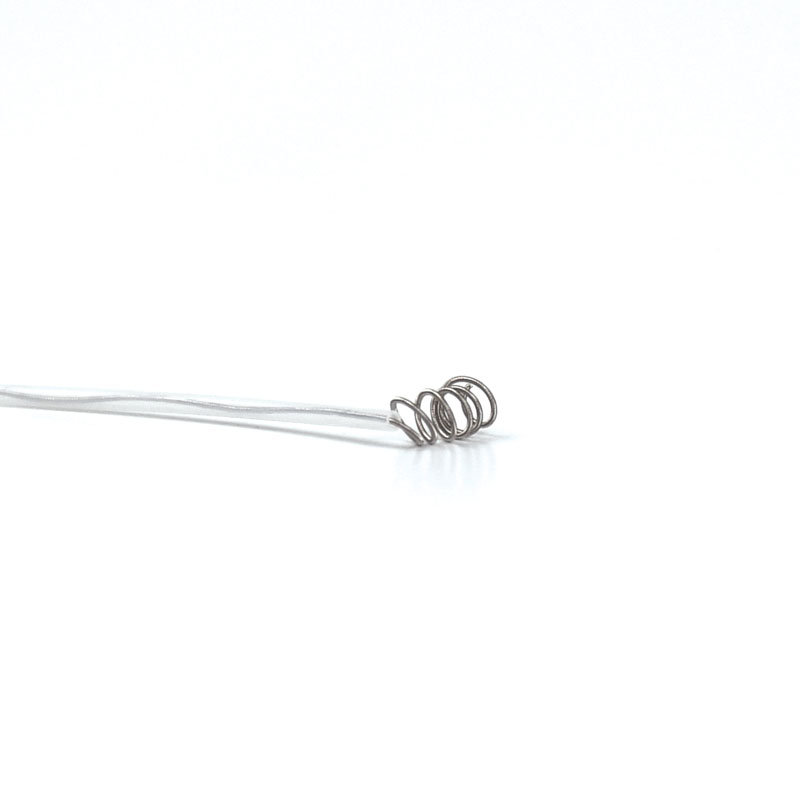

Spider Neurovascular Embolization Coil consists of a coil delivery system, coil releaser, and platinum embolization coil positioned at the end.
Detailed specifications
- Fast, reliable mechanical detachment with the pushable mechanism
- Contour pusher technology, beveled retainer ring, and a 360-degree axial rotation detachment zone for smooth delivery with minimal micro catheter kick out
- Progressive design balances softness, stability, and volume
- One of the softest coils
- Stable and conformable with consistent neck coverage.
SpiderⓇNeuro is a large-volume platinum embolization device. Given its larger primary diameter, achieve higher packing densities using fewer coils, compared to conventional 10-system coils. Design features a stretch-resistant member that is designed to resist coil compaction and aneurysm recurrence.
The platinum wire structures, which have been sized to resemble memory before, and their shape when opened vary by the purpose of use and morphology. The size, size, and the number of coils to be used in the aneurysm are determined by the experience of the specialist physician. The procedure performed under fluoroscopy is constantly monitored and when the aneurysm is reached, the coil is left to the aneurysm with a coil releaser. The left embolization coil fills the aneurysm by taking its size.
Embolization coils form the first skeletal structure in the treatment of cerebrovascular aneurysms or lesions. After the initial skeletal structure is created by the frame coils, the frames, filling, and finishing coils that will be used later provide embolization of the cerebrovascular aneurysm or lesion. Filling coils are used to fill the aneurysm/lesion area within the frame formed by the frame coil.
- SpiderⓇ Frame Coil
- SpiderⓇ Super Soft Coil
- SpiderⓇ Super Soft Helical Coil
- SpiderⓇ Helical Coil
Material | Platinium | |
Diameter (mm) | From 1,5 to 20 mm | |
Lenght (cm) | From 1 to 50 cm | |
Coil O.D.(inch) | 0.0115”, 0.0135” | |
OD(mm) | From 0,2921 to 0,3683 | |
Volume(mm) | From 0,67 to 53,27 | |
Detectable Tip | Pushable-Mechanically |
Order Number | Diameter | Design | Order Number | Diameter | Design |
NR1000 | 10 mm x 20 cm | Frame Coil | NR1051 | 14 mm x 30 mm | Helical Coil |
NR1001 | 10 mm x 30 cm | Frame Coil | NR1052 | 14 mm x 40 mm | Helical Coil |
NR1002 | 10 mm x 40 cm | Frame Coil | NR1053 | 16 mm x 30 mm | Helical Coil |
NR1003 | 12 mm x 30 cm | Frame Coil | NR1054 | 16 mm x 40 mm | Helical Coil |
NR1004 | 12 mm x 40 cm | Frame Coil | NR1055 | 18 mm x 40 mm | Helical Coil |
NR1005 | 12 mm x 50 cm | Frame Coil | NR1056 | 2 mm x 1 cm | Helical Coil |
NR1006 | 14 mm x 30 cm | Frame Coil | NR1057 | 2 mm x 2 cm | Helical Coil |
NR1007 | 14 mm x 40 cm | Frame Coil | NR1058 | 2 mm x 3 cm | Helical Coil |
NR1008 | 14 mm x 50 cm | Frame Coil | NR1059 | 2 mm x 4 cm | Helical Coil |
NR1009 | 16 mm x 40 cm | Frame Coil | NR1060 | 2 mm x 6 mm | Helical Coil |
NR1010 | 15 mm x 50 cm | Frame Coil | NR1061 | 2 mm x 8 mm | Helical Coil |
NR1011 | 18 mm x 40 cm | Frame Coil | NR1062 | 2.5 mm x 2 cm | Helical Coil |
NR1012 | 18 mm x 50 cm | Frame Coil | NR1063 | 2.5 mm x 4 cm | Helical Coil |
NR1013 | 22 mm x 50 cm | Frame Coil | NR1064 | 2.5 mm x 6 cm | Helical Coil |
NR1014 | 25 mm x 50 cm | Frame Coil | NR1065 | 2.5 mm x 8 cm | Helical Coil |
NR1015 | 3 mm x 8 cm | Frame Coil | NR1066 | 20 mm x 40 cm | Helical Coil |
NR1016 | 3 mm x 6 cm | Frame Coil | NR1067 | 20 mm x 50 cm | Helical Coil |
NR1017 | 3 mm x 10 cm | Frame Coil | NR1068 | 3 mm x 4 cm | Helical Coil |
NR1018 | 3.5 mm x 10 cm | Frame Coil | NR1069 | 3 mm x 6 cm | Helical Coil |
NR1019 | 3.5 mm x 6 cm | Frame Coil | NR1070 | 3 mm x 8 cm | Helical Coil |
NR1020 | 3.5 mm x 8 cm | Frame Coil | NR1071 | 4 mm x 10 cm | Helical Coil |
NR1021 | 4 mm x 10 cm | Frame Coil | NR1072 | 4 mm x 12 cm | Helical Coil |
NR1022 | 4 mm x 12 cm | Frame Coil | NR1073 | 4 mm x 8 cm | Helical Coil |
NR1023 | 4 mm x 15 cm | Frame Coil | NR1074 | 5 mm x 15 cm | Helical Coil |
NR1024 | 4 mm x 6 cm | Frame Coil | NR1075 | 5 mm x 20 cm | Helical Coil |
NR1025 | 4 mm x 8 cm | Frame Coil | NR1076 | 6 mm x 20 cm | Helical Coil |
NR1026 | 5 mm x 10 cm | Frame Coil | NR1077 | 7 mm x 20 cm | Helical Coil |
NR1027 | 5 mm x 15 cm | Frame Coil | NR1078 | 7 mm x 30 cm | Helical Coil |
NR1028 | 5 mm x 20 cm | Frame Coil | NR1079 | 8 mm x 20 cm | Helical Coil |
NR1029 | 5 mm x 8 cm | Frame Coil | NR1080 | 8 mm x 30 cm | Helical Coil |
