Pars
Libro Delivery Catheter
ParsⓇ offers the user the lowest available tip profile while providing unmatched burst and tensile strength, making it the ideal catheter for the treatment of Brain AVMs.
| Usable Length | 90 cm, 150 cm, 160 cm | |
| Tip Length | 25 cm | |
| Tip Shape | Straight tip | |
| Catheter Profile Proximal | 2.7F | |
| Catheter Inner Diameter | 1.5F | |
| Radiopaque Marker | 1 mm located at 2 mm from the tip | |
| Guidewire Compatibility | Maximum diameter 0.010" | |
| Coating | Hydrophilic | |
| Minimum Dead Space | 0.2 ml | |
| Structure of the Catheter | PE/PEBAX |

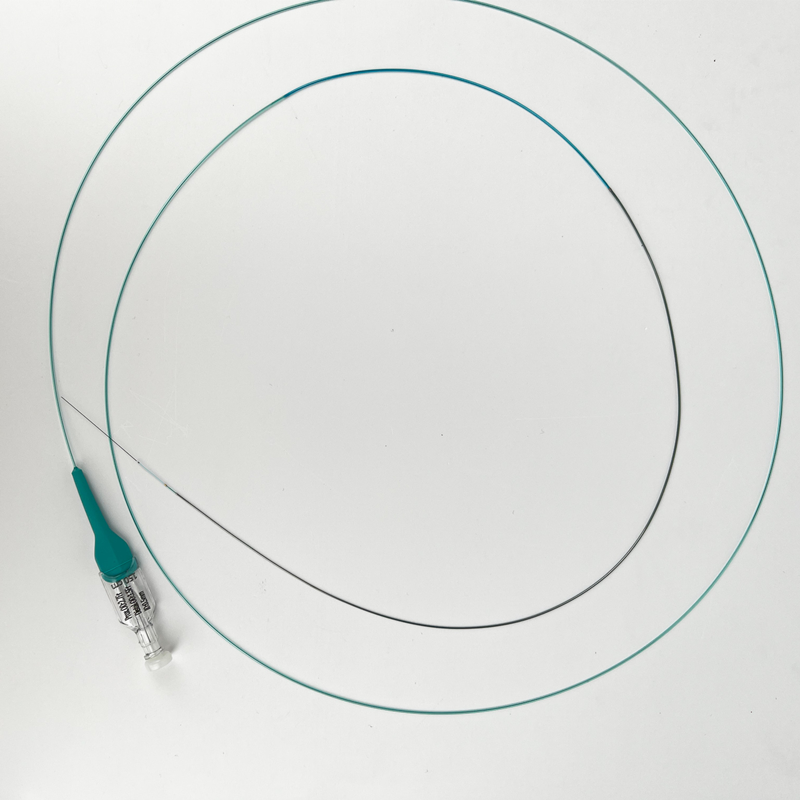

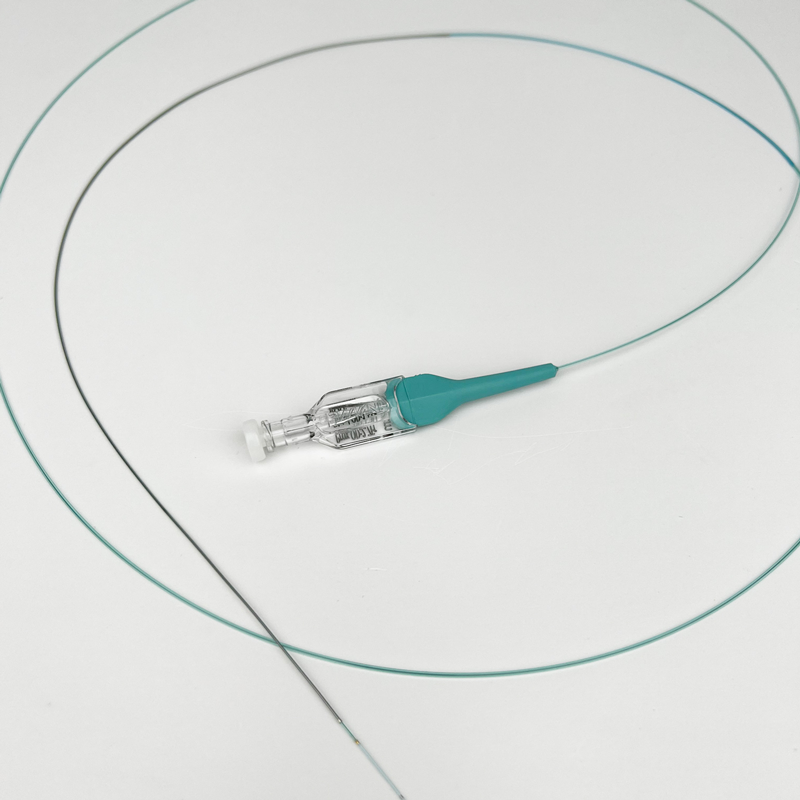

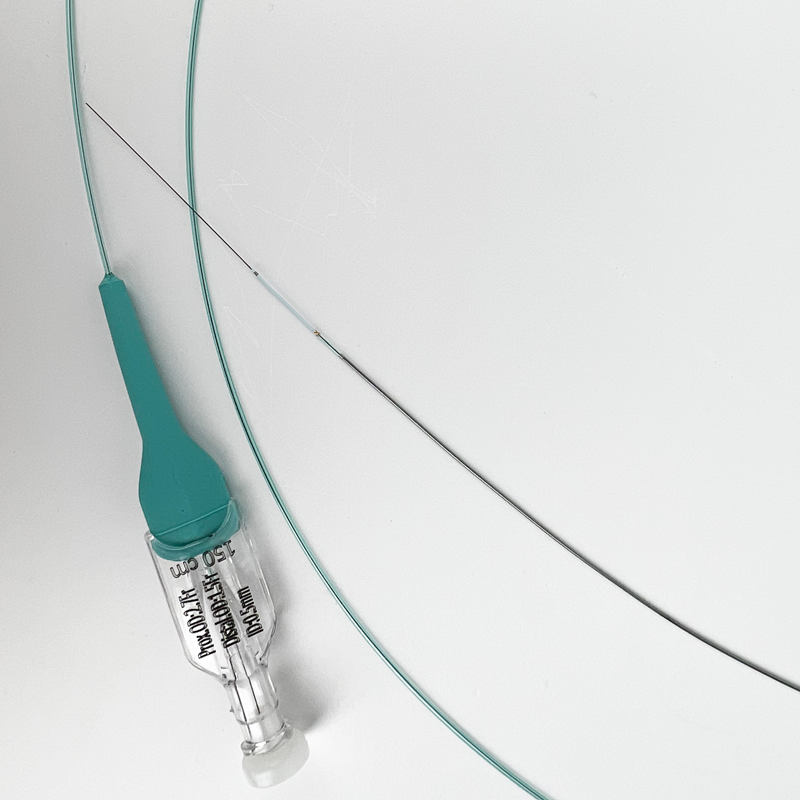

Pars Embolization Catheter is designed for super-selective infusion of physician-specified therapeutic agents and diagnostic materials such as contrast agents into distal, tortuous vessels for use in the treatment of Vascular and Neurovascular Aneurysm and/or endovascular embolization of arteriovenous malformations and vascular disorders. Compatible with DMSO. It is suitable for the use of 0.014” micro guide wire and is supplied together. It is a single-lumen, tip-hole catheter. The catheter has a semi-rigid proximal shaft and a highly flexible distal shaft to facilitate its advancement through the body. The proximal end of the catheter has a standard Luer adapter. The outer surface of the catheter has a hydrophilic, semi-rigid proximal shaft and a highly flexible distal shaft. The distal end of the catheter has a 1.5 cm detachable tip that releases the distal tip when the force required to remove the catheter exceeds the force required to release the tip. 2 radiopaque marker bands are indicating the position of the catheter and the detachable tip area.
Detailed specifications
ParsⓇ Embolisation Catheter is the Neurovascular intervention that use for the controlled selective infusion of physician-specified therapeutic agents such as embolization materials and of diagnostic materials such as contrast media to treat vascular diseases of the brain.
ParsⓇ Embolisation Catheter is a single-lumen, endhole catheter designed for the subselective infusion of physician-specified therapeutic agents such as embolization materials and diagnostic materials such as contrast media in tortuous, distal vessels.
We offer advanced solutions for the treatments of the following brain diseases:
- Intracerebral AVMs and AV fistulas
- Intracerebral aneurysms
- Intracranial stenosis
- Ischemic stroke and intracerebral thrombus
- Tumors
The catheter has a semi-rigid proximal shaft and a highly flexible distal shaft to facilitate the advancement of the catheter in the anatomy.

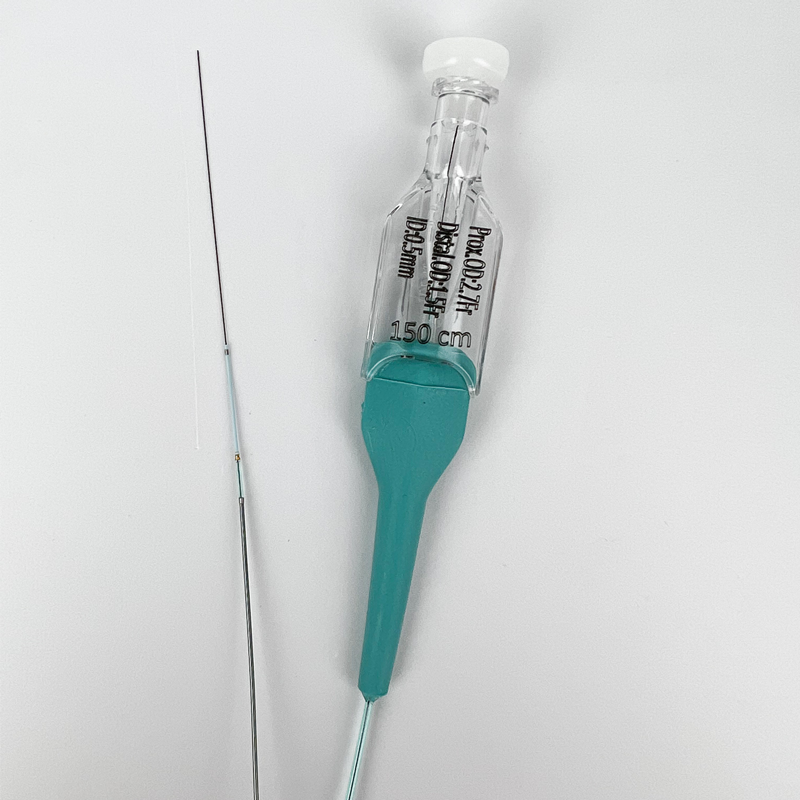

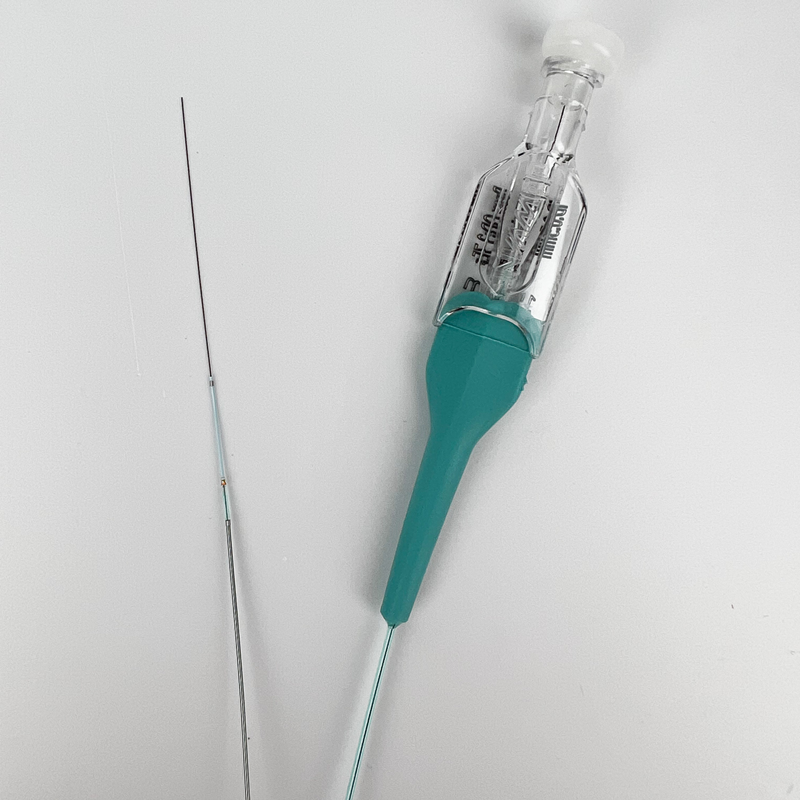

The proximal end of the catheter incorporates a standard luer adapterwhich is compatible with DMSO to facilitate the attachment of accessories.
The catheter has a radiopaque marker at the distal end to facilitate fluoroscopic visualization.
The outer surfaces of the catheter are coated to increase lubricity.
The catheter is used to increase the rigidity of the distal section during introduction into the guiding catheter.
ParsⓇ is the Flow directed micro catheter with a strong resistance to pressure and total DMSO compatibility.
The catheters are the only real flow dependant catheters, meaning that their progression through the system is facilitated by the blood flow. This characteristic is achieved thanks to an extreme suppleness of the tubes which allows a fast and non traumatic progression of the catheter inside the blood vessels.
Compatible embolizing agents
- NBCA
- Ethanol
- Lipiodol
- Microspheres
- PVA Particles
- Chemoembolization Agents
- Contrast media
- Hydrophilic and Soft flow-directable distal segment
- Excellent kink resistance and Proximal pushability with Stainless steel coil design shaft
- Dedicated tip design with radiopaque marker
- Excellent crossability
- Ensures reliable fluoroscopic visibility
- Optimized tip design
- High compressive strength
- Low profile
- DMSO compatibility
- Embolizing agent compliance
- Flow Directed
- Detachable Tip structure
- Over the guidewire (0.010”) system avoiding vessel wall damage
| Usable Length | 90 cm, 150 cm, 160 cm | |
| Tip Length | 25 cm | |
| Tip Shape | Straight tip | |
| Catheter Profile Proximal | 2.7F | |
| Catheter Inner Diameter | 1.5F | |
| Radiopaque Marker | 1 mm located at 2 mm from the tip | |
| Guidewire Compatibility | Maximum diameter 0.010" | |
| Coating | Hydrophilic | |
| Minimum Dead Space | 0.2 ml | |
| Structure of the Catheter | PE/PEBAX |
|
Order Number
|
Proximal Outer Diameter
|
Inner Diameter
|
Distal Outer Diameter
|
Usable Lenght
|
Guide catheter compatibility
|
Distal Tip Lenght
|
|
|
2.7 Fr
|
I.D. ≥ 0.013" /
|
1.5 / 0.020”
|
90 cm
|
0,010”
|
1.5 cm
|
|
|
2.7 Fr
|
I.D. ≥ 0.013" /
|
1.5 / 0.020”
|
150 cm
|
0,010”
|
1.5 cm
|
|
|
2.7 Fr
|
I.D. ≥ 0.013" /
|
1.5 / 0.020”
|
90 cm
|
0,010”
|
3 cm
|
|
|
2.7 Fr
|
I.D. ≥ 0.013" /
|
1.5 / 0.020”
|
150 cm
|
0,010”
|
3 cm
|
|
|
2.7 Fr
|
I.D. ≥ 0.013" /
|
1.5 / 0.020”
|
160 cm
|
0,010”
|
5 cm
|
